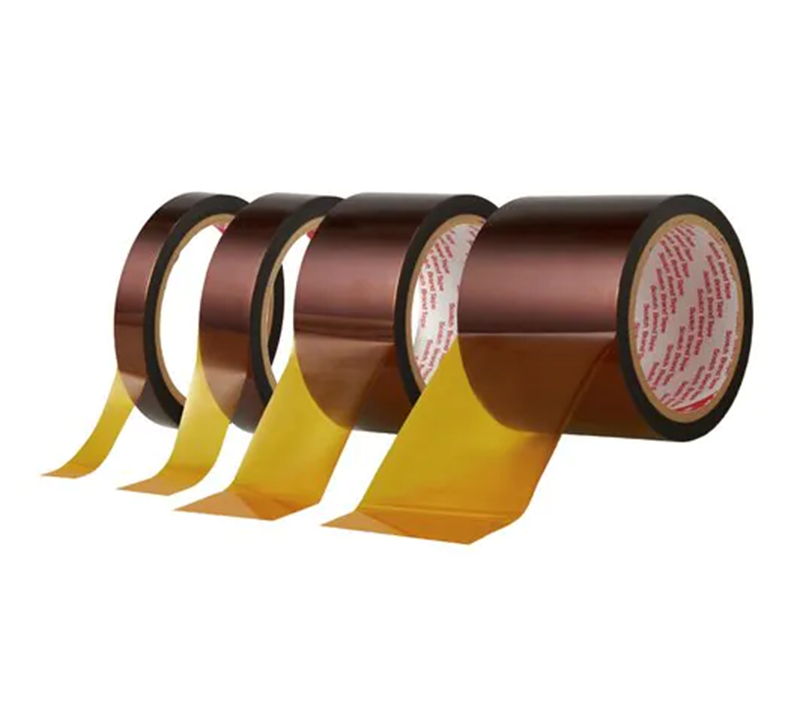

3M™ Polyimide Film Tape
- The DuPont™ Kapton® polyimide film does not soften at elevated temperatures, thus the film provides an excellent release surface at elevated temperatures
- Is dimensionally stable at high temperatures, which prevents rework, enabling high productivity
- Is flame retardant, chemical and radiation resistant which protects surfaces to help reduce replacement costs
- The silicone adhesive's high temperature performance reduces adhesive transfer which helps to eliminate cleaning, enabling high productivity
- Available on cardboard or polyethyelene core
Details

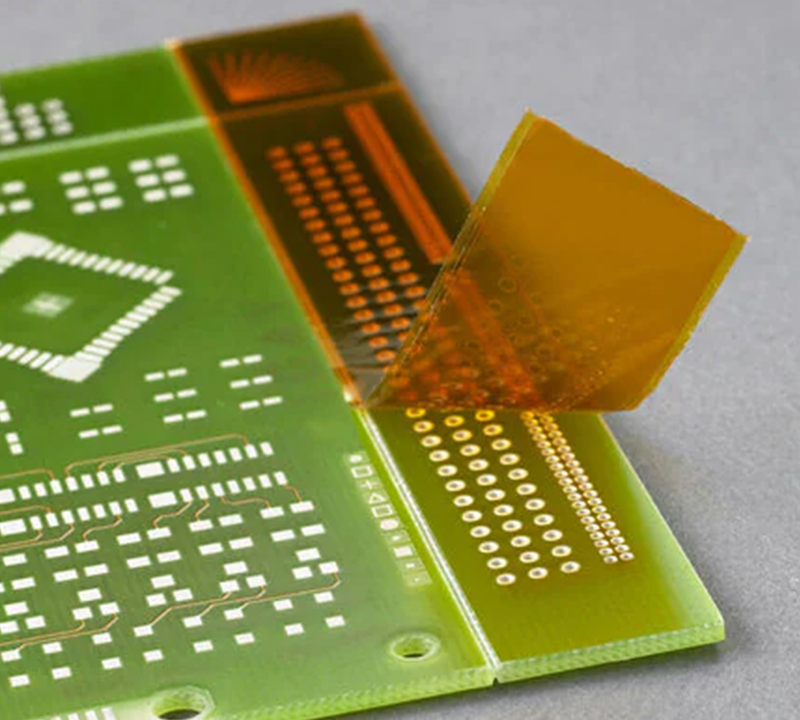

3M™ Polyimide Film Tape 5413 with DuPont™ Kapton® polyimide film and silicone adhesive used for PCB solder masking and other high temperature applications.
"Halogen Free" refers to the International Electrochemical Commission’s Definition, IEC 61249-2-21, which sets the limits of: 900 ppm maximum chlorine; 900 ppm maximum bromine; 1500 ppm maximum total halogens
Typical Properties
3M™ Polyimide Film Tape 5413 with DuPont™ Kapton® polyimide film and silicone adhesive used for PCB solder masking and other high temperature applications.
"Halogen Free" refers to the International Electrochemical Commission’s Definition, IEC 61249-2-21, which sets the limits of: 900 ppm maximum chlorine; 900 ppm maximum bromine; 1500 ppm maximum total halogens
Typical Properties
|
Attribute Name
|
Value
|
|---|---|
|
Adhesive Type
|
Silicone
|
|
Backing (Carrier) Material
|
Polyimide Film
|
|
Brand
|
3M™
|
|
Color Family
|
Yellow
|
|
National Stock Number
|
7510013779992, 7510015460214, 7510014709469, 7510015674332
|
|
Overall Length (Imperial)
|
36 yd
|
|
Overall Length (Metric)
|
33 m
|
|
Overall Width (Imperial)
|
0.125 in, 0.25 in, 0.375 in, 0.5 in, 0.625 in, 0.875 in
|
|
Overall Width (Metric)
|
12.7 mm, 15.9 mm, 22.23 mm, 3.18 mm, 6.35 mm, 9.5 mm
|
|
Product Color
|
Amber
|
|
Size
|
0.50 in. x 36 yd. (1.2 cm x 33 m)
|
|
Size (Imperial)
|
0.125 in x 36 yd, 0.25 in x 36 yd, 0.375 in x 36 yd, 0.5 in x 36 yd, 0.625 in x 36 yd, 0.875 in x 36 yd
|
|
Size (Metric)
|
12.7 mm x 33 m, 15.9 mm x 33 m, 22.23 mm x 33 m, 3.18 mm x 33 m, 6.35 mm x 33 m, 9.5 mm x 33 m
|
|
TDS Required
|
Yes
|
|
Total Tape Thickness without Liner (Imperial)
|
2.7 mil
|
|
Total Tape Thickness without Liner (Metric)
|
0.069 mm
|
