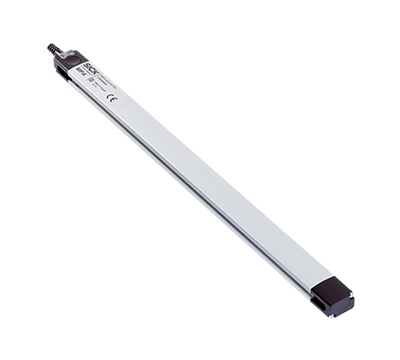

    Position sensors Sick MPA

    Type:MPA-323THTP0
    Part No.:1059454

    add to cart Inquiry Now
    Features
    Cylinder type Universal
    Cylinder types with adapter

    Round body cylinder

    Tie rod cylinder

    T-slot cylinders

    Festo cylinders DSBC

    SMC cylinders CP96
    Measuring range 323 mm 1)
    Housing length 325 mm
    Output function Analog, IO-Link
    Electrical wiring DC 4-wire
    Analog output (voltage) 0 V ... 10 V
    Analog output (current) 4 mA ... 20 mA
    Teach-in ✔
    Enclosure rating

    IP65 2)

    IP67

    IP68
    IO-Link functions Standard functions
    Adjustment
    Teach-in control panel Teaching in the measuring range
    Selecting the current/voltage output or IO-Link
    Resetting the measuring range to factory settings
    IO-Link Teaching in the measuring range
    Resetting the measuring range
    • 1) , ± 1 mm.
    • 2) According to EN 60529.

    Mechanics/electronics
    Supply voltage 15 V DC ... 30 V DC
    Power consumption 35 mA, without load
    Max. load resistance ≤ 500 Ω Power Output, at 24 V
    Min. load resistance ≥ 2 kΩ 1)
    Protection class III
    Required magnetic field sensitivity, typ. 2 mT ... 15 mT
    Resolution, typ. 0.03 % FSR (max. ≥ 0.06 mm) 2) 3)
    Linearity error, typ. 0.5 mm 4)
    Repeat accuracy, typ. 0.06 % FSR (≥ 0.1 mm) 5)
    Sampling rate, typ. 1.15 ms 6)
    IO-Link ✔
    Status indicator LED ✔
    Reverse polarity protection ✔
    Short-circuit protection ✔
    Ambient operating temperature –20 °C ... +70 °C
    Shock and vibration resistance 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
    EMC According to EN 60947-5-2 7)
    Connection type Cable with M8 male connector, 4-pin, 0.3 m
    Connection type Detail
    Deep-freeze property Do not bend below 0 °C
    Conductor cross-section 0.08 mm²
    Cable diameter Ø 2.6 mm
    Bending radius With fixed installation > 5 x cable diameter
      For flexible use > 10 x cable diameter
    Cable outlet Axial
    Material
    Housing Metal, Aluminum
      Plastic
    Cable PUR
    UL File No. NRKH.E181493 & NRKH7.E181493
    • 1) Voltage output.
    • 2) FSR: Full Scale Range; max. measuring range.
    • 3) When using IO-Link, the resolution is 0.25 mm.
    • 4) At 25 ° C, linearity error (maximum deviation) depending on response curve and minimal deviation function.
    • 5) At 25 ° C, repeatability magnet movement in one direction.
    • 6) Only in standard mode, not in IO-Link mode.
    • 7) The analog measured value can deviate under transient conditions.

    Safety-related parameters
    MTTFD 162 years
    DCavg 0 %
    TM (mission time) 20 years

    Communication interface
    Communication interface IO-Link V1.0.1
    Communication Interface detail COM2
    Cycle time 2.3 ms
    Process data length 16 Bit
    Process data structure

    Bit 0 ... 3 = reserved

    Bit 4 ... 5 = position (after decimal point)

    Bit 6 ... 15 = position (before decimal point)

    Classifications
    ECl@ss 5.0 27270104
    ECl@ss 5.1.4 27270104
    ECl@ss 6.0 27270104
    ECl@ss 6.2 27270104
    ECl@ss 7.0 27270104
    ECl@ss 8.0 27270104
    ECl@ss 8.1 27270104
    ECl@ss 9.0 27270104
    ECl@ss 10.0 27270104
    ECl@ss 11.0 27270104
    ETIM 5.0 EC002544
    ETIM 6.0 EC002544
    ETIM 7.0 EC002544
    ETIM 8.0 EC002544
    UNSPSC 16.0901 39122230
