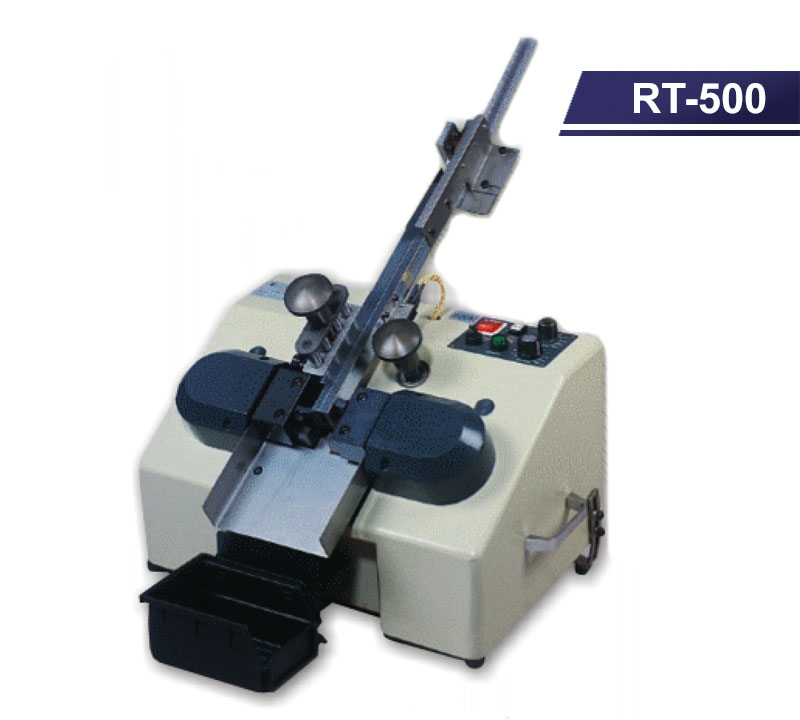

Power Transistor Lead Forming Machine
Power : 110V/60Hz ; 220V/50Hz
Dimension : 460(L) x 360(W)x 340(H)mm
Weight : 29kgs
Capacity : Max.6,000pcs/Hour
Dimension : 460(L) x 360(W)x 340(H)mm
Weight : 29kgs
Capacity : Max.6,000pcs/Hour
- Suitable for power transistors (TO-220/TO-263/TO-247/TOP3 etc.) or similar components in stick or tube.
- Buy extra die sets and rails for different parts' forming spec.
- Please provide the exact samples and forming spec. (outline package, wire thickness)
- Tailor-make Tooling set is changeable for various kinds of forming.
- A set of die and rail is equipped upon your spec. Complete the confirmation on the forming samples, the machine can be used right after receiving it. Easy maintenance and simple die change.
- Forming speed is adjustable stepless continuously.
- Vibrant Bowl Feeder (RT-500VP) or Auto Tube Feeder (RT-700) is extendable optionally.
- Example: (A) is adjustable and minimum at 2mm, the rest are fixed.
- RT-700, Automatic Tube Feeder, can be purchased and applied optionally afterward. RT-700 feeds part in tubes or sticks automatically into RT-500.
