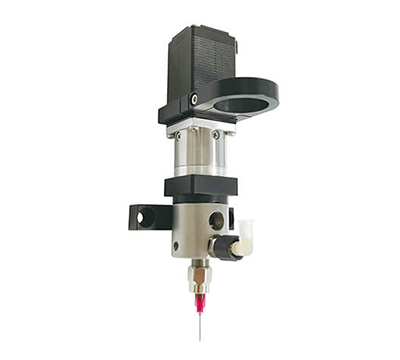

Precision Auger Valve 204PA
Features
- With the driving part, it can be directly used with the dispensing machine, which makes the machine more direct variable speed control.
- Convenient disassembly and assembly of shaft and shaft sleeve, greatly reducing idle time due to cleaning materials.
- With reverse suction function to reduce wire drawing.
- Optional 8P or 16P, CARBIDE tungsten carbide, hardened stainless steel screw or bushing.
- Can effectively reduce the problem of broken glue due to air bubbles.
- When using high-viscosity rubber material, it has a larger amount of glue than air pressure.
- The amount of glue produced is less likely to be affected when the viscosity of the glue material changes.
- Dead volume in the valve has been reduced to a minimum, the glue output is accurate.
- Applicable dispensing materials: SMA red glue, solder paste with particles or abrasive materials, silver glue, EPOXY and TWO PARTS EPOXY, UV glue.
Specification
| Model | 204PA |
|---|---|
| Glue Contact Material | Titanium-coated tungsten carbide screw and hardened stainless steel bushing or tungsten carbide bushing, Teflon shaft sea |
| Dispensing Speed | 0.01 ~ 300 rpm |
| Reproducibility | ± 0.5 % |
| Viscosity Range | 30,000 ~ 1,300,000 cps |
| Size ( LxW mm) | 130 x 35 |
| Weight | 0.5 kg |
