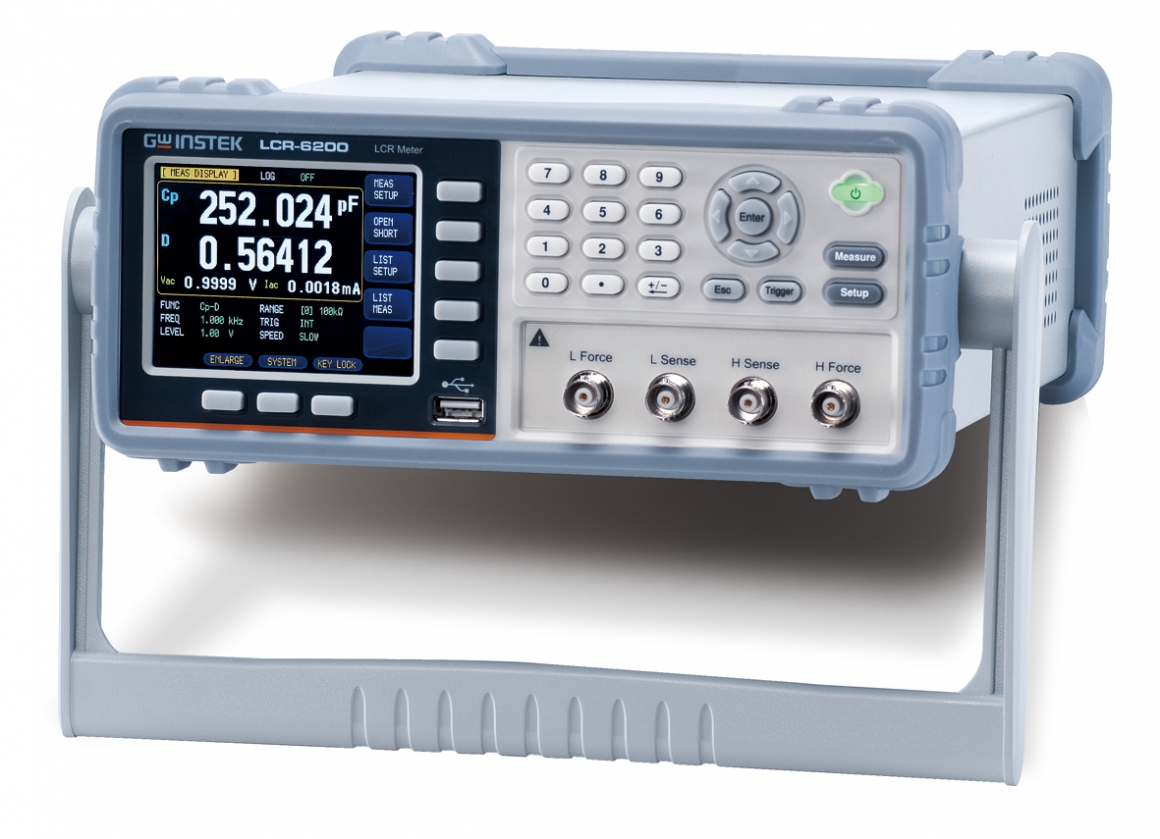

Precision LCR Meter LCR-6000

Description

The LCR-6000 series adopts 3.5-inch color LCD and features opulent display parameters. In addition to simultaneously displaying setting criteria and measurement results, the series increases two additional monitoring parameters. In other words, there are four parameters, primary/secondary and two monitoring, simultaneously shown on the screen that tremendously enhances the measurement efficiency. The enlarge display mode not only emphasizes the measurement results, but also provides PASS/FAIL judgment to facilitate a rapid and convenient test result.

Convenience is one of the unique features. The LCR-6000 series comes equipped with two zero methods, which are full frequency range and spot. Users, without turning off the power and changing test fixture, can freely change frequency within the provided frequency range to conduct measurements. By so doing, tremendous time can be saved from repeatedly executing zero operation. Additionally, frequency range of the series is consecutive that allows users to input precise frequency value to conduct the most genuine test on components.

The brand new compacted LCR-6000 series can effectively improve the limitation of space. Diverse measurement functionalities and display methods are making the series the high CP ratio choice in meeting the requirements of R&D, component assessment for engineering departments, category sorting requirements for component production, and IQC for verification on component specifications.

LCR-6000 Specifications

The specifications apply when the LCR-6000 is powered on for at least 30 minutes under +18°C~+28°C.

TEST FREQUENCY
	LCR-6300: 10Hz~300kHz(±0.01%) (4 digits resolution) LCR-6200: 10Hz~200kHz(±0.01%) (4 digits resolution) LCR-6100: 10Hz~100kHz(±0.01%) (4 digits resolution) LCR-6020: 10Hz~ 20kHz(±0.01%) (4 digits resolution) LCR-6002: 10Hz~ 2kHz(±0.01%) (4 digits resolution)
OUTPUT IMPEDANCE
	30Ω / 50Ω / 100Ω selectable
BASIC ACCURACY
Slow / Med	0.05%
Fast	0.1%
TEST SPEED
	FAST:25ms / MED:100ms / SLOW:333ms
TEST SIGNAL LEVELS
AC Voltage	10.00mV- 2.00V (±10%) CV :10.00mV- 2.00V(±6%)
Current	100.0μA- 20.00mA (±10%) CC :100.0μA- 20.00mA(±6%) (@2VMax)
DCR	+2V, 0.066A(Max.), Output impedance fixed 30Ω
DC BIAS
Internal	±2.5V (0.5%+0.005V)
DISPLAY RANGE
R, X, |Z|	0.00001Ω ~ 99.9999MΩ
G, B, |Y|	0.01nS ~ 999.999S
L	0.00001μH ~ 9999.99H
C	0.00001pF ~ 9999.99mF
D	0.00001 ~ 9.99999
Q	0.00001 ~ 99999.9
θd	-179.999° ~ 179.999°
θr	-3.14159 ~ 3.14159
DCR	0.00001Ω ~ 99.9999MΩ
Δ%	-99999% ~ 99999%
TEST MODE
16 Combinations	Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, Rs-Q, Rp-Q, R-X, Z-θr, Z-θd, Z-D, Z-Q, DCR
Monitor parameter (2 selectable)	Z, D, Q, Vac, Iac, Δ, Δ%, θr, θd, R, X, G, B, Y
LISTED MODE
	10 steps
BIN FUNCTION
	Comparator (9BIN,AUX:1BIN)
MEMORY
INT – panel setting	10 file name
INT – measured data	10000 Data(.csv)
USB storage	10 file name for setting, 9999 file name for data, 999 Log file for LCD screen
OTHER FUNCTION
Auto Level Control (ALC)	ON/OFF
Average	1~256 times
Trigger	INT / MAN / EXT / BUS
Delay	0ms~60s
Judgment	PASS / FAIL
Auto LCZ	ON / OFF
Screen Capture	Saving in to USB (Bmp file)
DISPLAY
	3.5'LCD, RGB color (320x240)
INTERFACE
	RS-232(SCPI), Handler, USB Host/Device
POWER SOURCE
	AC 100V-240V, 50-60Hz, Max. 15W
DIMENSION & WEIGHT
	265(W)x107(H)x312(D) mm, Approx.3kg

Accessories

Included Accessories
Safety Sheet x1, Power Cord x1, Test Fixture LCR-06B x1, CD x1(User manual / PC software)

Option

LCR-16 +/- 45V DC Bias Voltage Box
LCR-17 +/- 2.5A DC Bias Current Box


Optional Accessories

LCR-05  Test Fixture for Axial & Radial Lead Compenents
LCR-06B  Test Lead with Kelvin clip (4 wire type)
LCR-07  Test Lead with Alligator clip (2 wire type)
LCR-08  Test Fixture (Tweezers) for SMD/Chip components
LCR-15  Test Fixture for SMD/Chip components
GTL-232  RS-232C Cable, 9-pin Female to 9-pin, null Modem for Computer, Approx.2000mm
GTL-246  USB Cable
GRA-422  Rack Mount Kit (19" 2U)
