Dispensing

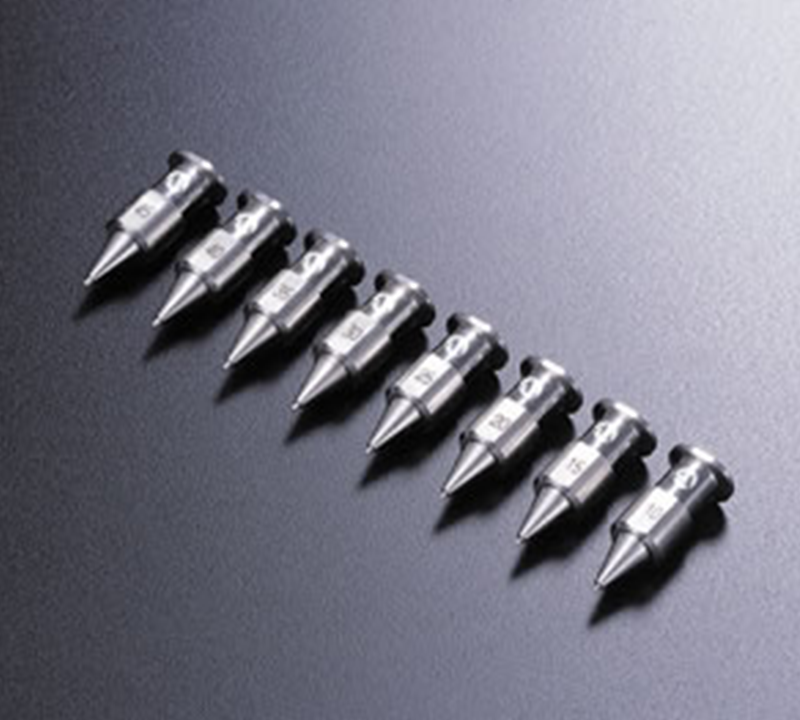

Precision solid nozzle Musashi SHN
The integral structure eliminates the operation of nozzle mounting to the needle base. Excellent flowability thanks to the tapered shape. Ultra-thin processing of needle tip actualizes high-precision dispensing with high stability in small volume.
- Needle material: Stainless steel
- SHN-[]N
| Model | Nozzle OD (ϕ) | Nozzle ID (ϕ) | Minimum Order Quantity |
|---|---|---|---|
| SHN-0.6N | 0.70 | 0.60 | 1 |
| SHN-0.5N | 0.60 | 0.50 | 1 |
| SHN-0.45N | 0.55 | 0.45 | 1 |
| SHN-0.4N | 0.50 | 0.40 | 1 |
| SHN-0.35N | 0.45 | 0.35 | 1 |
| SHN-0.3N | 0.40 | 0.30 | 1 |
| SHN-0.25N | 0.35 | 0.25 | 1 |
| SHN-0.2N | 0.30 | 0.20 | 1 |
| SHN-0.15N | 0.25 | 0.15 | 1 |
| SHN-0.1N | 0.20 | 0.10 | 1 |
