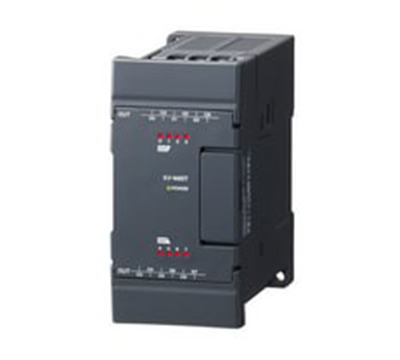

Programmable Logic Controller KV-N8ET

Model

KV-N8ET

Expansion output unit

Output Points

8 points

External connectionmethod

MOSFET
With overcurrent protection function ^{*1 *2}

External connection method

Terminal block

Rated load

30 VDC, 0.5 A

Leakage current (when output is OFF)

100 μA or less

Residual voltage (at ON)

0.8 VDC or less (with 0.5 A output)
0.6 VDC or less (with 0.3 A output)

ON resistance

−

Common method

8 points/1 common
(4 terminals) ^*3

Response time

OFF to ON

100 μs or less (with a load of 1 mA or more)

ON to OFF

200 μs or less (with a load of 1 mA or more)

Relay life

−

Relay replacement

Internal current consumption

30 mA or less

Weight

Approx. 160 g
