Dispensing

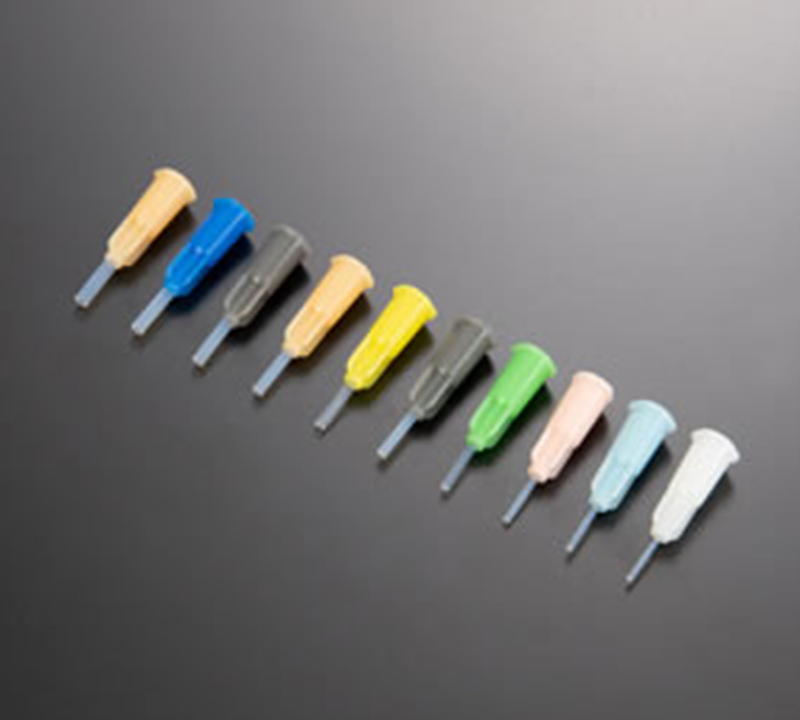

PTFE nozzle Musashi TN
Needle material: Fluorine resin Needle base material: Polyacetal
- TN-[]G
| Gauge | Needle length 8 mm | Nozzle OD (φ) | Nozzle ID (φ) | Color | Minimum Order Quantity |
|---|---|---|---|---|---|
| Model | |||||
| 13 | TN-13G | 2.10 | 1.50 | ● Ivory | 50 |
| 14 | TN-14G | 1.95 | 1.35 | ● Blue | 50 |
| 15 | TN-15G | 1.79 | 1.19 | ● Gray | 50 |
| 16 | TN-16G | 1.67 | 1.07 | ● Ivory | 50 |
| 17 | TN-17G | 1.56 | 0.96 | ● Yellow | 50 |
| 18 | TN-18G | 1.46 | 0.86 | ● Gray | 50 |
| 19 | TN-19G | 1.18 | 0.68 | ● Light green | 50 |
| 20 | TN-20G | 1.06 | 0.56 | ● Light pink | 50 |
| 21 | TN-21G | 0.92 | 0.46 | ● Light blue | 50 |
| 22 | TN-22G | 0.84 | 0.38 | White | 50 |
