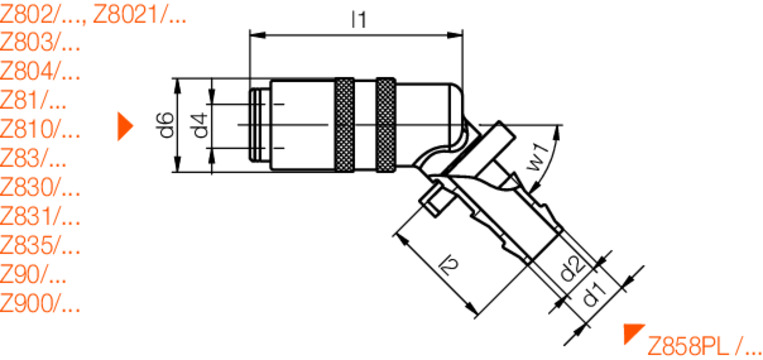

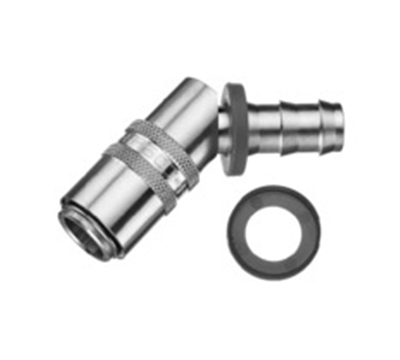

Rapid coupling, open flow, 45° angled
| p | l2 | l1 | d6 | d4 | d2 | d1 | w1 | Product |
|---|---|---|---|---|---|---|---|---|
| 25 | 22,4 | 43 | 17 | 9 | 6 | 9 | 45 |
Z801PL/9x45
|
| 25 | 26,1 | 51 | 22 | 13 | 9 | 13 | 45 |
Z801PL/13x45
|
