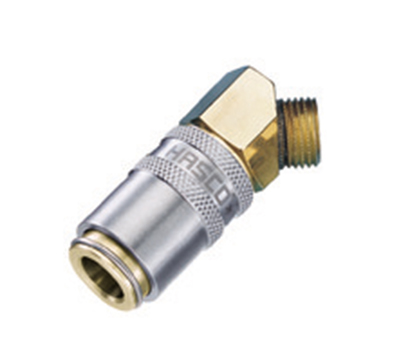

Rapid coupling, open flow, 45° angled
- Hasco Z808/d4xd7xw1
- 2.0401
- max. 25 bar
Rapid coupling, open flow, 45° angled

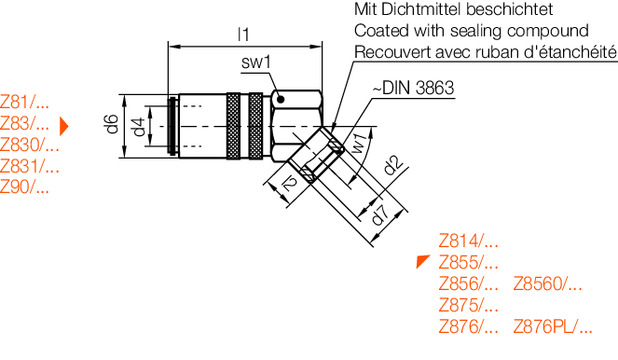

| p | sw1 | l2 | l1 | d6 | d2 | d4 | d7 | w1 | Product |
|---|---|---|---|---|---|---|---|---|---|
| 25 | 17 | 11 | 47 | 17 | 6 | 9 | G1/4 | 45 |
Z808/9xG1/4x45
|
| 25 | 17 | 11 | 47 | 17 | 6 | 9 | G3/8 | 45 |
Z808/9xG3/8x45
|
| 25 | 15 | 7 | 47 | 17 | 6 | 9 | M10x1 | 45 |
Z808/9x10x1x45
|
| 25 | 17 | 9 | 47 | 17 | 6 | 9 | M14x1,5 | 45 |
Z808/9x14x1,5x45
|
| 25 | 17 | 11 | 47 | 17 | 7 | 9 | M16x1,5 | 45 |
Z808/9x16x1,5x45
|
| 25 | 22 | 12,5 | 54 | 22 | 9 | 13 | G3/8 | 45 |
Z808/13xG3/8x45
|
| 25 | 22 | 12 | 54 | 22 | 6 | 13 | M14x1,5 | 45 |
Z808/13x14x1,5x45
|
