Mold Parts

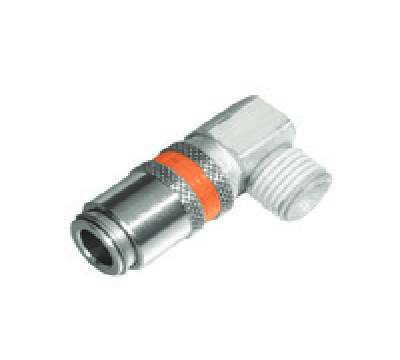

Rapid coupling, open flow, 90° angled
- Hasco Z808HT/d4xd7xw1
- 2.0401
- max. 25 bar
Rapid coupling, open flow, 90° angled
| p | sw1 | l2 | l1 | d6 | d2 | d4 | d7 | w1 | Product |
|---|---|---|---|---|---|---|---|---|---|
| 25 | 17 | 9 | 47 | 17 | 6 | 9 | M14x1,5 | 90 |
Z808HT/9x14x1,5x90
|
| 25 | 22 | 9 | 52 | 22 | 9 | 13 | M16x1,5 | 90 |
Z808HT/13x16x1,5x90
|
