Mold Parts

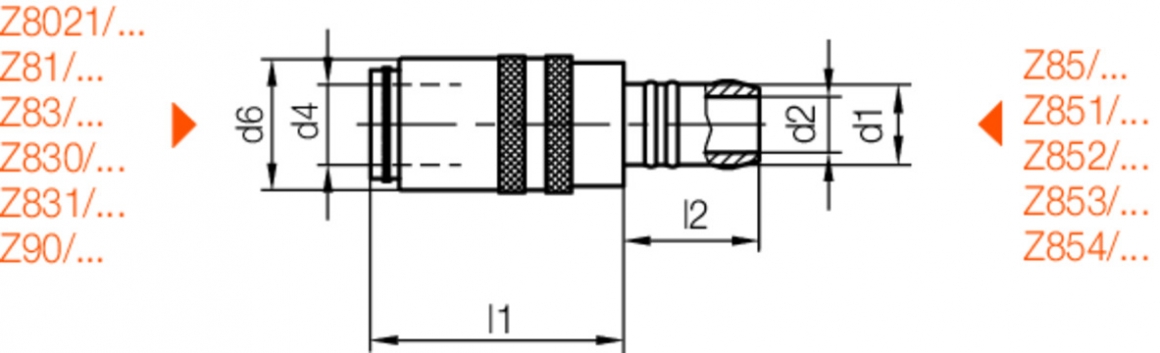

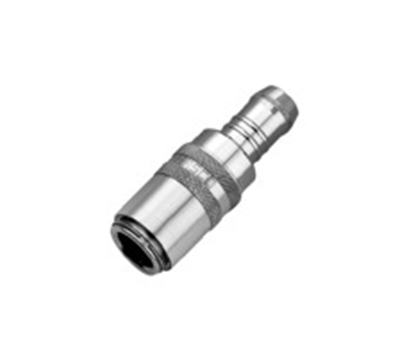

Rapid coupling, open flow
| p | l2 | l1 | d6 | d4 | d2 | d1 | Product |
|---|---|---|---|---|---|---|---|
| 25 | 13,5 | 22 | 10 | 5 | 3,5 | 5 |
Z801/5
|
| 25 | 22,5 | 30 | 17 | 9 | 6 | 9 |
Z801/9
|
| 25 | 25 | 36,5 | 22 | 13 | 9 | 13 |
Z801/13
|
| 25 | 32 | 58 | 31 | 19 | 13 | 19 |
Z801/19
|
