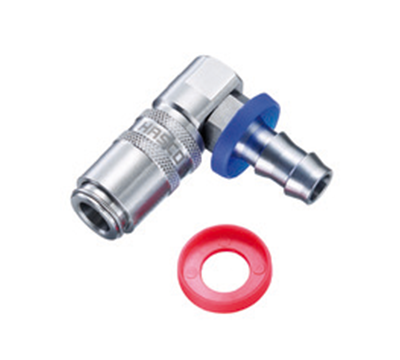

Rapid coupling, Stainless Steel, open flow, 90° angled

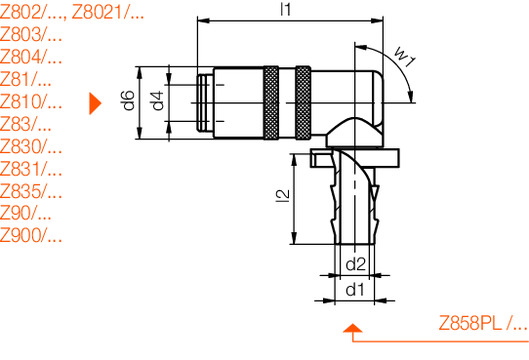

p
l2
l1
d6
d4
d2
d1
w1
Mat
Product
25
22,4
47
17
9
7,2
9
90
VA
Z801PL/9x90/VA
25
26,1
53,5
22
13
9
13
90
VA
Z801PL/13x90/VA
The new HASCO cooling range in stainless steel is employed in cleanrooms or medical technology applications for the temperature control of injection moulds in reliable processes, using hot/cold water or oil. The high-quality 1.4305 material of the HASCO coupling system guarantees reliable and durable temperature control applications. The special FKM materials of the O-rings are eminently suitable for high temperature applications. The low compression set allows optimum and reliable deployment. Production losses due to leaks are considerably reduced.
Ideal for medical and clean-room technology
Seals in special FKM
Standard system: ≤ 150°C (water), ≤ 200°C (oil)
HT-System: ≤ 180°C (water), ≤ 220°C (oil)
Low compression set
Thread tightness even with large temperature differences
Choice between open flow, or shut-off valves on one or both sides
