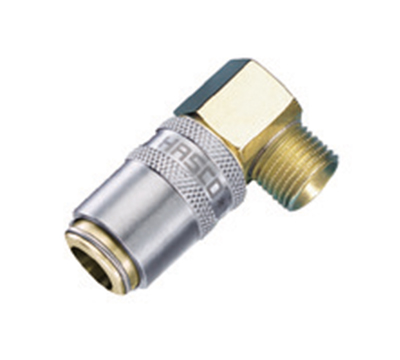

Rapid coupling, with open flow, 90° angled
- Hasco Z808/d4xd7xw1
- 2.0401
- 25 bar
Rapid coupling, with open flow, 90° angled

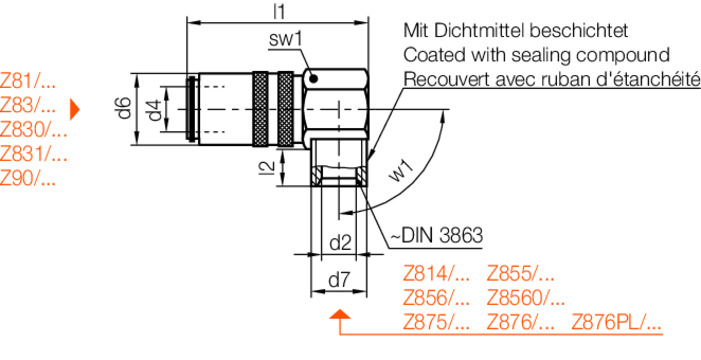

| p | sw1 | l2 | l1 | d6 | d2 | d4 | d7 | w1 | Product |
|---|---|---|---|---|---|---|---|---|---|
| 25 | 17 | 11 | 49 | 17 | 6 | 9 | G1/4 | 90 |
Z808/9xG1/4x90
|
| 25 | 17 | 11 | 49 | 17 | 6 | 9 | G3/8 | 90 |
Z808/9xG3/8x90
|
| 25 | 17 | 7 | 49 | 17 | 6 | 9 | M10x1 | 90 |
Z808/9x10x1x90
|
| 25 | 17 | 12 | 47 | 17 | 6 | 9 | M14x1,5 | 90 |
Z808/9x14x1,5x90
|
| 25 | 17 | 11 | 49 | 17 | 7 | 9 | M16x1,5 | 90 |
Z808/9x16x1,5x90
|
| 25 | 22 | 12,5 | 54 | 22 | 9 | 13 | G3/8 | 90 |
Z808/13xG3/8x90
|
| 25 | 22 | 12 | 54 | 22 | 6 | 13 | M14x1,5 | 90 |
Z808/13x14x1,5x90
|
