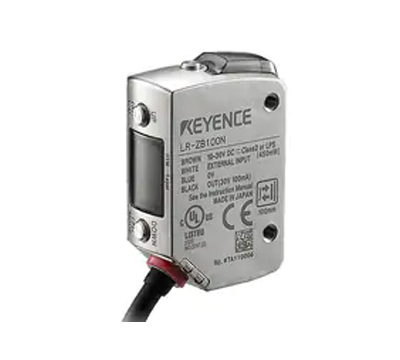

Rectangular W Cable Type 100 Mm Keyence LR-ZB100N
*2 The laser classification for FDA (CDRH) is implemented based on IEC60825-1 in accordance with the requirements of Laser Notice No.50.
*3 Have passed resistance tests with cleaning agents from multiple manufactures.
*4 When the response time is 10 ms
Rectangular W Cable Type 100 Mm Keyence LR-ZB100N
|
Model |
LR-ZB100N |
|||
|
Type |
Distance based laser sensor |
|||
|
Appearance |
Rectangular |
|||
|
Output |
NPN |
|||
|
Cable connection |
2 m cable |
|||
|
Detectable distance |
35 to 100 mm 1.38" to 3.94" (650 to 0)*1 |
|||
|
Standard detectable deviation |
35 to 50 mm 1.38" to 1.97": 1.5 mm 0.06" |
|||
|
Display resolution |
2 (0.2 mm 0.008") |
|||
|
Spot size |
Approx. 2 × 1 mm 0.08" × 0.04" at 100 mm 3.94" |
|||
|
Response time |
1.5 ms / 10 ms / 50 ms selectable |
|||
|
Light source |
Type |
Red laser (660 nm) |
||
|
Laser class |
Class 1 laser product (IEC60825-1, FDA (CDRH) Part1040.10*2) |
|||
|
Function |
Indicator |
3-digit 7-segment display (red),output indicator (yellow),DATUM indicator (orange),1 spot indicator (green) |
||
|
Timer |
OFF/ON delay/OFF delay/One-shot |
|||
|
Specifications |
Power voltage |
10 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS |
||
|
Power consumption |
450 mW or less (18 mA or less at 24 V, 34 mA or less at 12 V) |
|||
|
Control output |
NPN Open collector, Applied voltage 30 VDC or less, Control current 100 mA or less, Residual voltage 1.2 V or less at 10 mA or less, 2 V or less at 10 to 100 mA |
|||
|
Protection circuit |
Protection against reverse power connection, output overcurrent, output surge, reverse output connection |
|||
|
Output operation |
Light-ON / Dark-ON selectable |
|||
|
External input |
Input time calibration: 35 ms or more ON, 35 ms or more OFF |
|||
|
Environmental resistance |
Enclosure rating |
IP68 (IEC60529), IP69K (DIN40050-9), NEMA 4X, 6P, 13 (NEMA250), ECOLAB*3, Diversey*3 |
||
|
Insulation resistance |
20 MΩ or more (500 VDC) |
|||
|
Ambient light |
Incandescent lamp: 4,000 lux or less |
|||
|
Ambient temperature |
-10 to +50 °C 14 to 122 °F (No freezing) |
|||
|
Storage temperature |
-25 to +75 °C -13 to 167 °F (No freezing) |
|||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Withstand voltage |
1,000 VAC, 50/60 Hz, 1 min |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
|||
|
Shock resistance |
1,000 m/s2, 6 times in each of the X, Y, and Z directions |
|||
|
Material |
Case: SUS316L, Display: PES, Lens cover: PMMA with scratch-resistant coating, Packing/Connector ring: FKM |
|||
|
Accompanying items |
Instruction Manual, Certification/Identification label (FDA) |
|||
|
Weight |
Approx. 110 g (Including cable) |
|||
|
*1 Display readings can be used as a guide for the detecting distance. When the setting value is tuned, the readout shifts. When the value exceeds "-99", "-FF" is displayed. |
||||
