Machine

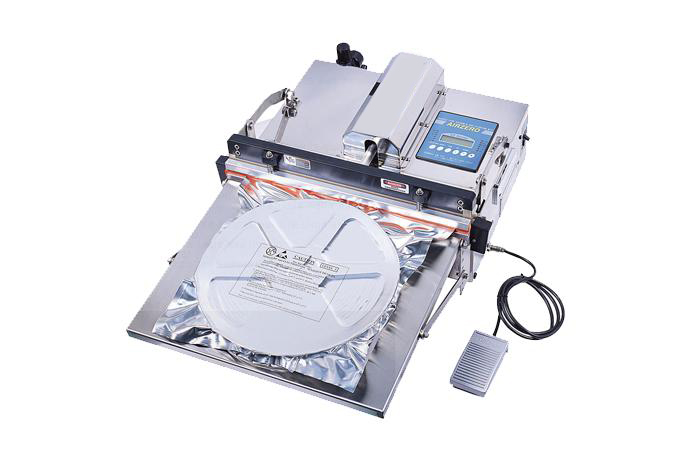

Reel Vacuum Sealing Machine AZ-600E
- Semi-conduct & other Industrial goods
- CLEANROOM VACUUM PACKAGING
- Prevention of Oxidation
- Prevention of moisture
- Free from Static Electricity
- Elimination of Particle
SPECIFICATIONS
USEFUL
1. Nitrogen flushing
APPLICATION FIELD FOR INDUSTRIAL GOODS
APPLICATION FIELD FOR FOOD
| WEIGHT (kg) | 30kg (Notice: This value is changeable relying on vacuum pump type) |
| BODY | Stainless Stee |
| SEALING BAR LENGTH (mm) | 600mm (option: 450, 800, double heat wire) |
| SEALING BAR WIDTH (mm) | 5, 10mm |
| VACUUM PUMP | Ejector vacuum pump type, oil vacuum pump, oilless vacuum pump (Refer to selection method of vacuum pump) |
| REQUIRED ELECTRICITY | 1ph, 220V, 50/60Hz (Option : 110V) |
| REQUIRED AIR PRESSURE | 5-7kg/㎠ |
| MAX. INSTANTANEOUS CONSUMED ELECTRICITY | 1.8 ~ 4.0kW (relying on sealing bar's length and width) |
| MAX. FINAL VACUUM | generally 85kPa in case of using ejector type vacuum pump |
| VACUUM CREATION | timer controlled / vacuum sensor controlled |
| GAS FLUSHING/SEALING/COOLING | timer controlled |
| VACUUM VISUALISATION | appears digitally on LCD panel of control box |
| RECOMMENDED | when a user needs a sub-stand on which the machine is put |
| PROCESS SETTING | The control unit memorizes various combinations of vacuum, gas flush & seal among MODE 1 ~ 8, besides S mode for only seal and V mode for only vacuum & seal. |
USEFUL
1. Nitrogen flushing
- Substitution for Oxygen
- Prevention of Moisture
- Protection of Goods from external shock
- Packaging externally as same as vacuum Packaging by adjusting gas volume
- Use: Confectionary & Grains
- Carbon dioxide for inhibitory action against germs
- Use: Fishes & Meats
- Keeping up of Freshness & Nutrition by inhibitory action
- Against respiration & photosynthesis
- Use: Vegetables & Fruits
APPLICATION FIELD FOR INDUSTRIAL GOODS
- Semicon & Electric
- Optical & Medical Goods
- Machinery Parts
- Mobile Phone Parts
- Research Equipment
- Silicon / Others
APPLICATION FIELD FOR FOOD
- Seafood
- Fishes
- Meats
- Vegetables
- Fruits
- Grains
- Tea
- Coffee
- Nuts
- Noddle
- Fodder
- Cheese
- Herbs
- Dried Fishes
- Meats
- Hot Goods
