Sensor
Specifications
|

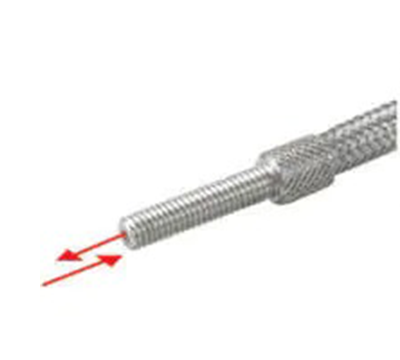

Model |
FU-35FG*1 |
|||
|
Size |
M3 |
|||
|
Detection arrangement |
Coaxial |
|||
|
Fibre unit length |
1 m39.37" free-cut |
|||
|
Fibre unit diameter |
ø1.3×2 |
|||
|
Shape |
Straight |
|||
|
Minimum bend radius |
R10 mm0.394" , stainless |
|||
|
Minimum detectable object |
Gold wire with a diameter of 0.005 mm0.0002" *2 |
|||
|
Environmental resistance |
Ambient temperature |
-40 to +50 °C -40 to 122 °F |
||
|
Weight |
Approx. 15 g |
|||
|
*1 For details on the detecting distance, see the fiber amplifier catalog. |
||||
