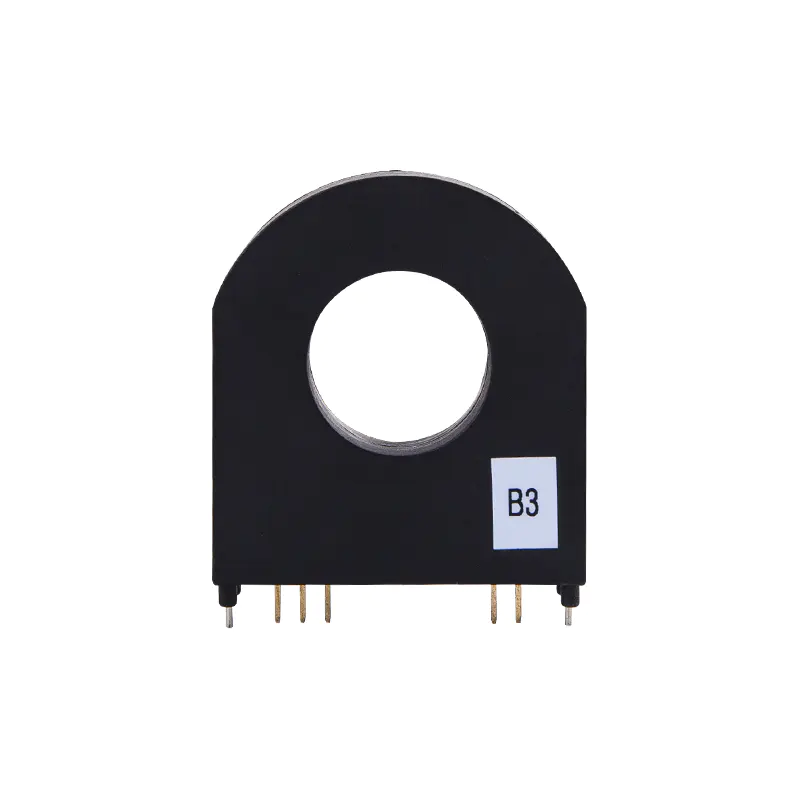

Residual Current Operated Protective Sensor For Ev Charger Eastron ESCS-B3
- DC 6mA Current Alarm
- Mounted on PCB Board
- Integrated Digital Residual Current Indication
- Application for EV Charger
|
Voltage |
|
|
VDD |
4.85-5.15 VDC ( recommend 4.9-5.10VDC) |
|
Voltage input/output |
Low level: 0-0.6V DC |
|
High level: 4.2-5V DC |
|
|
Environment |
|
|
Operating Temperature |
-40℃… +105℃ |
|
Storage Temperature |
-40℃…+105℃ |
|
Humidity |
≤95% non-condensing |
|
FIT |
B1/B2: 25℃= 48.755, 80℃= 213.13 |
|
B3: 25℃= TBD, 80℃= TBD |
|
|
MTBF |
≥ 20 years |
|
Altitude |
≤ 4000m |
|
Order code |
Current Input |
Digital Input |
Standard |
|
ESCS-B1/B2-E1 |
DC 6mA/ AC 30mA |
0V/5V |
IEC62955 RDC-PD |
|
ESCS-B1/B2-E2 |
DC 6mA |
0V/5V |
IEC62955 RDC-MD |
|
ESCS-B1/B2-U3 |
DC 6mA/AC 20mA |
/ |
Ul2231 |
|
ESCS-B3 |
DC 6mA/ AC 30mA |
0V/5V |
IEC62955 RDC-PD |
