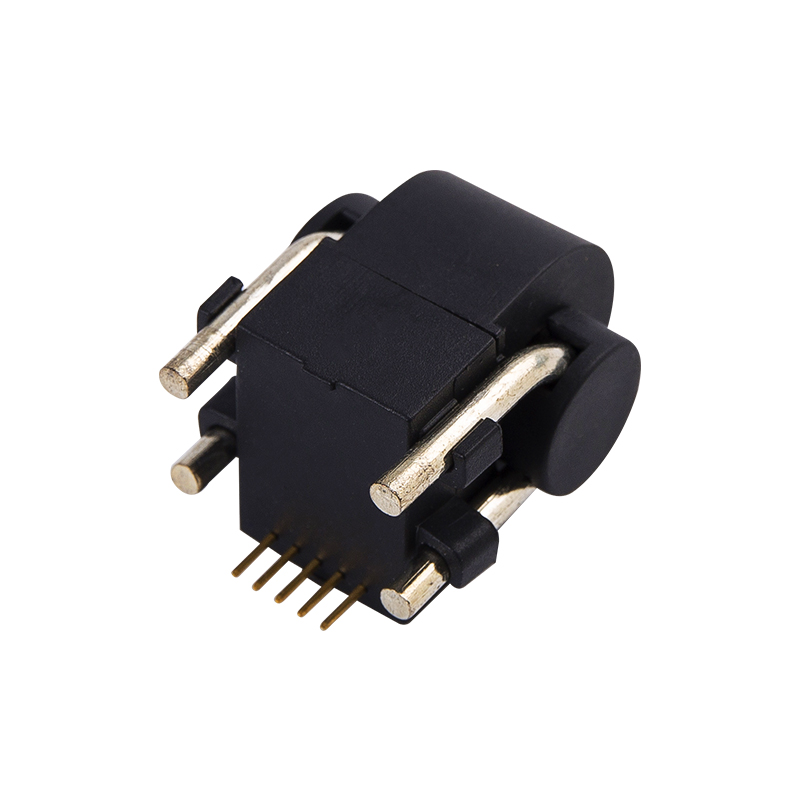

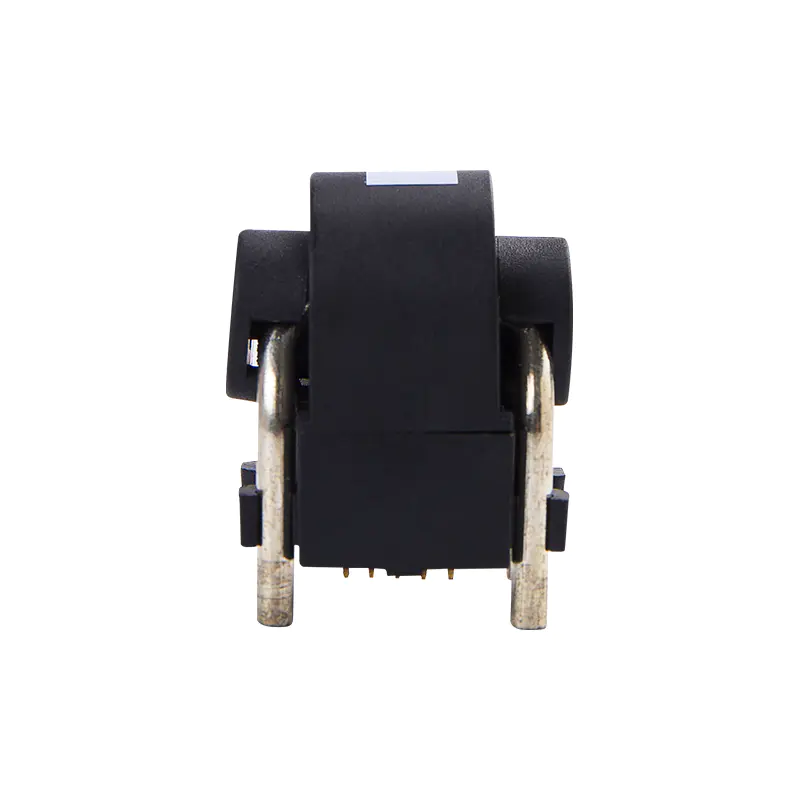

Residual Current Operated Protective Sensor For Ev Charger Eastron ESCS-G1-E1/E3
- DC 6mA Current Alarm
- Mounted on PCB Board
- Integrated Digital Residual Current Indication
- Application for EV Charger
|
Clearance |
|
|
Primary-Primary |
≥ 8.2mm |
|
Primary-Secondary |
≥ 5.8mm |
|
Creepage |
|
|
Primary-Primary |
≥ 8.2mm |
|
Primary-Secondary |
≥ 5.8mm |
|
Environment |
|
|
Operating Temperature |
-40℃… +105℃ |
|
Storage Temperature |
-40℃…+105℃ |
|
Humidity |
≤95% non-condensing |
|
FIT |
25℃= 48.755, 80℃= 213.13 |
|
MTBF |
≥ 20 years |
|
Altitude |
≤ 4000m |
|
Order code |
Current Input |
Digital Input |
Digital Input |
Standard |
|
ESCS-G1-E1 |
DC 6mA/ AC 30mA |
0V/5V |
/ |
IEC62955 RDC-PD |
|
ESCS-G1-E3 |
DC 6mA/ AC 30mA |
0V/5V |
√ |
IEC62955 RDC-PD |
