Sensor

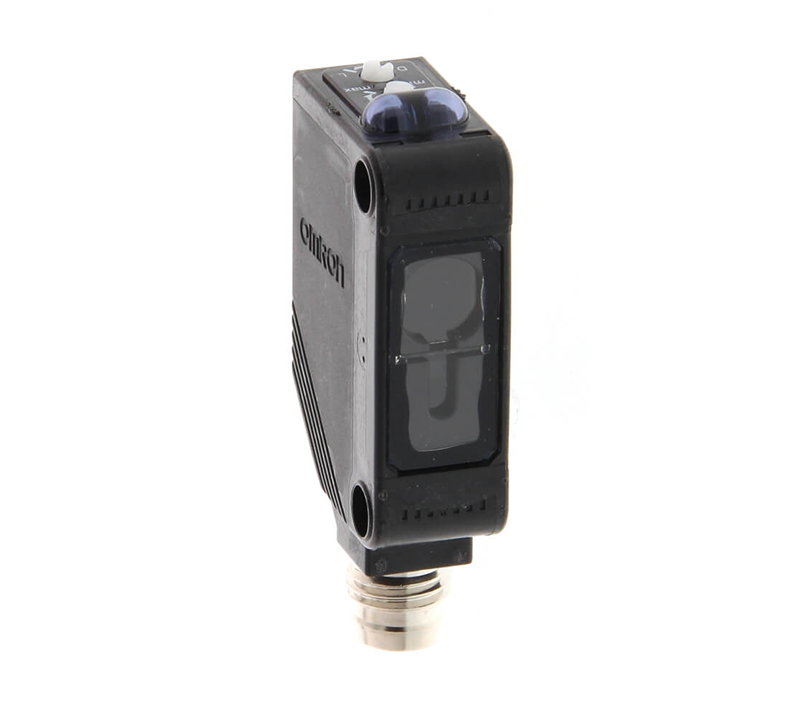

Retro-Reflective Sensor Omron E3Z-LR86 OMS
Photoelectric sensor, rectangular housing, red laser class 1, retro-reflective, 15 m, PNP, Light-ON/Dark-ON, M8 4-pin connector
| Shape | Cuboid |
| Sensing method | Retro-reflective |
| Sensing distance | 15000 mm |
| Sensing distance (min.) | 200 mm |
| Setting method | Manual adjustment |
| Connection method | Connector M8 - 4 pin |
| Output type | PNP |
| Operation mode | Dark-ON, Light-ON |
| Response time | 1 ms |
| Material housing | PBT |
| Thread size | Other |
| Product Width (unpacked) | 10.8 mm |
| Product Height (unpacked) | 31 mm |
| Product Depth (unpacked) | 20 mm |
| Type of light | Laser diode, red light |
| Laser class | 1 |
| Spot size | 5 mm |
| Power supply voltage | 12-24 V |
| Features | M.S.R. |
| Degree of protection (IP) | IP67 |
