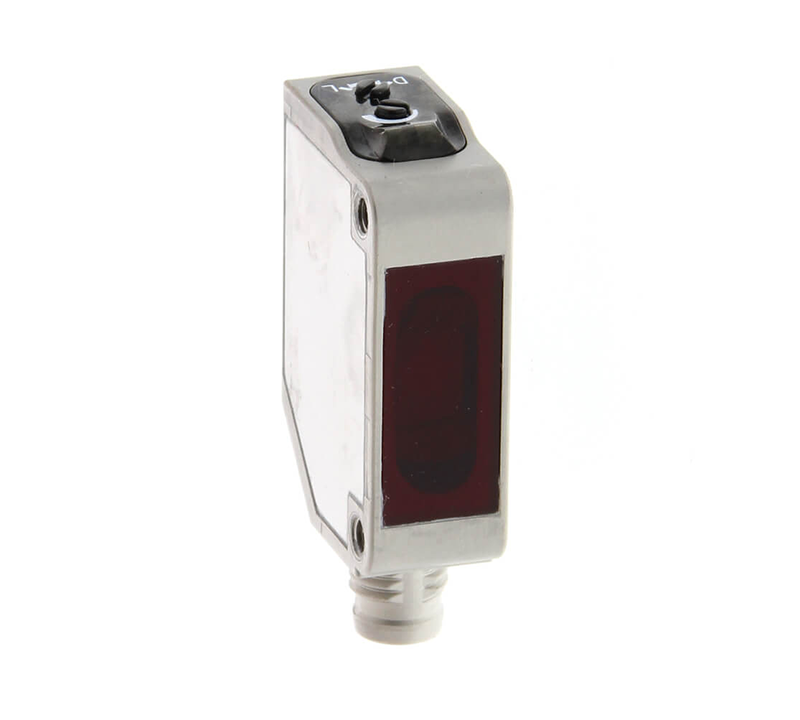

Retro Reflective Sensor Omron E3ZM-B86T
Photoelectric sensor, rectangular housing, stainless steel, red LED, retro-reflective, transparent object, 500 mm, with potentiometer, PNP, Light-ON/Dark-ON, M8 4-pin connector
| Shape | Cuboid |
| Sensing method | Retro-reflective |
| Sensing distance | 500 mm |
| Sensing distance (min.) | 100 mm |
| Setting method | Manual adjustment |
| Connection method | Connector M8 - 4 pin |
| Output type | PNP |
| Operation mode | Dark-ON, Light-ON |
| Response time | 1 ms |
| Material housing | Stainless steel |
| Thread size | Other |
| Product Width (unpacked) | 10.8 mm |
| Product Height (unpacked) | 32 mm |
| Product Depth (unpacked) | 21 mm |
| Type of light | Polarized red light |
| Power supply voltage | 10-30 V |
| Features | M.S.R., Transparent detection (all media: glass, PET, foil) |
| Degree of protection (IP) | IP67/IP69K |
