Sensor

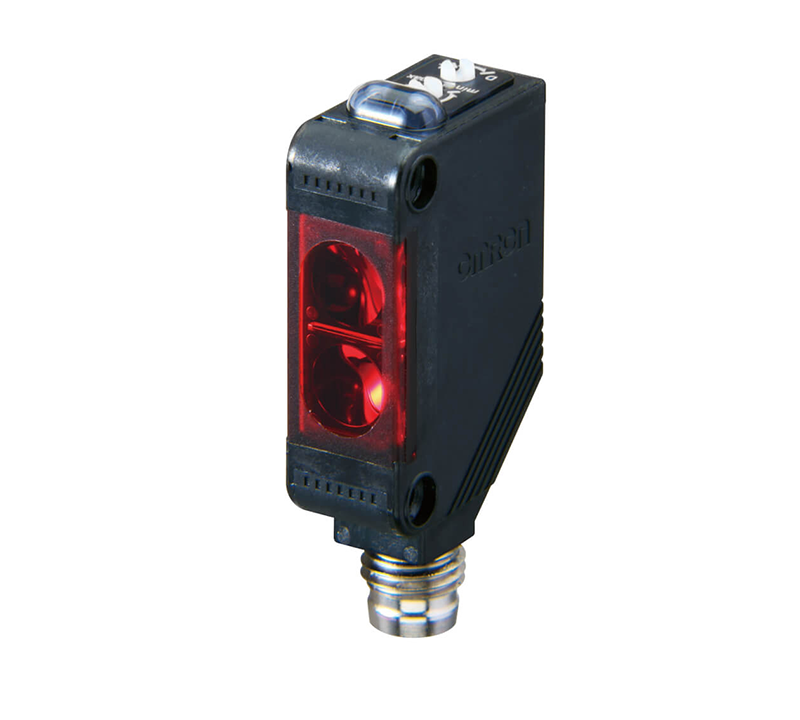

Retro-Reflective Sensor PNP 4m 1ms 24V 100mA IP67 E3Z Omron E3Z-R86 OMI
Photoelectric sensor, rectangular housing, red LED, retro-reflective, 4 m, PNP, Light-ON/Dark-ON, M8 4-pin connector
| Shape | Cuboid |
| Sensing method | Retro-reflective |
| Sensing distance | 4000 mm |
| Sensing distance (min.) | 100 mm |
| Setting method | Manual adjustment |
| Connection method | Connector M8 - 4 pin |
| Output type | PNP |
| Operation mode | Dark-ON, Light-ON |
| Response time | 1 ms |
| Material housing | PBT |
| Thread size | Other |
| Product Width (unpacked) | 10.8 mm |
| Product Height (unpacked) | 31 mm |
| Product Depth (unpacked) | 20 mm |
| Type of light | Polarized red light |
| Power supply voltage | 12-24 V |
| Features | M.S.R. |
| Degree of protection (IP) | IP67 |
