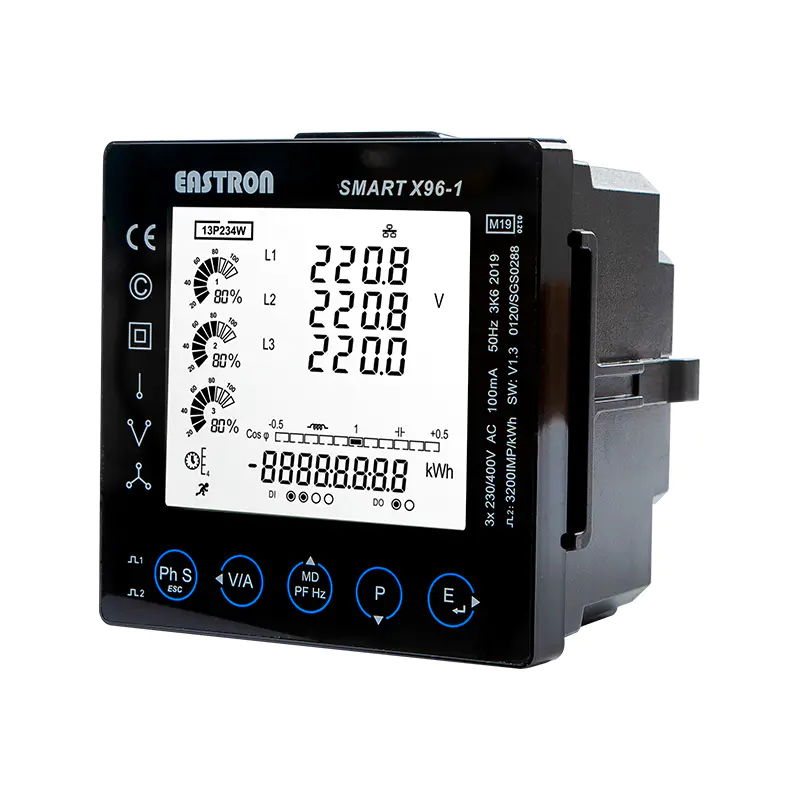

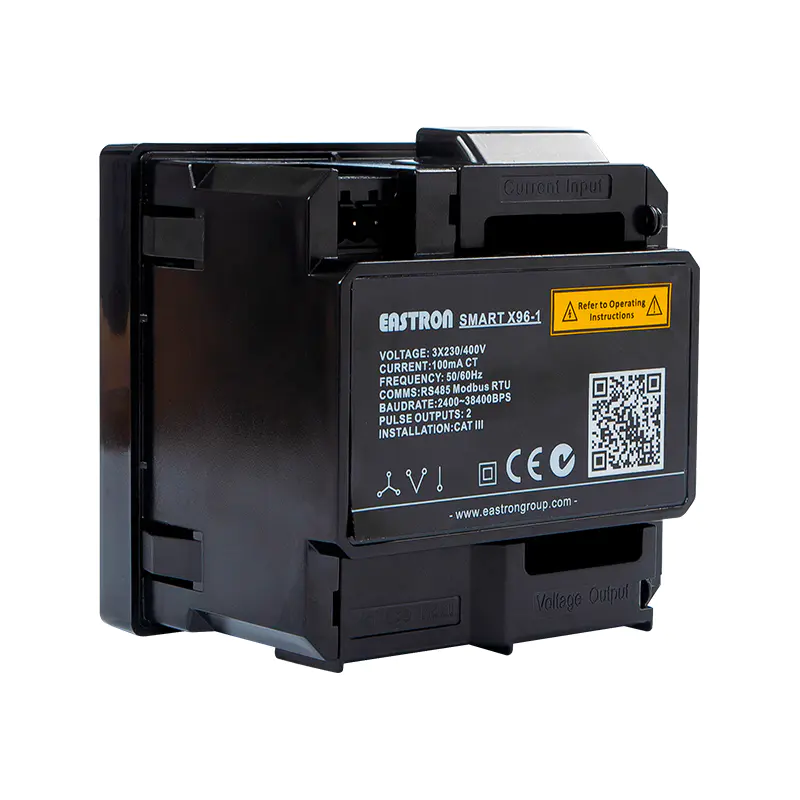

Rj12 Ct Type Three Phase Panel Mounted Power Analyzer For Easy Click System Eastron Smart X96-1A

Electrical characteristics

Type of measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement accuracy

Active power

1.0% of range maximum

Reactive power

1.0% of range maximum

Apparent power

1.0% of range maximum

Active Energy

IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0

Reactive Energy

1.0% of range maximum to IEC 62053-24

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)

THD

2% to 63rd harmonic

Input & Output

Input-Current

Rated Current

100mA

Max Current

9999A

Output

Contact Rating current

2-27mA at 27V DC

Contact Rating voltage

5-27V DC

Pulse Width

60 / 100 / 200 ms

Pulse constant of S0 1

0.01 / 0.1 / 1 / 10 / 100 kWh/kVArh

Pulsed constant of S0 2

3200 IMP/kWh ((non-configurable))

Communication

RS485 port

Modbus RTU (RS485)

Type

2-wire half duplex

Baud rate

2400,4800, 9600, 19200, 38400 bps

Address

1 to 247

Pariy

None (default), Even, Odd

Stop Bit

1 or 2

Mechanical Characteristics

Weight

420g

IP Degree of Protection (IEC 60529)

IP51 front display

Dimensions (WxHxD)

96x96X92mm

Panel cut-out

Vertical

Material of meter case

Self-extinguishing UL 94 V-0

Terminals

Voltage: Shrouded screw-clamp. Current: RJ12 terminal

Environmental Characteristics

Operating Temperature

-25 to 55°C

Storage Temperature

-40 to  70°C

Humidity Rating

<95% RH at 50 °C (non-condensing)

Pollution Degree

2

Altitude

2000m
