Screwing
Robotic Screw Feeder Ohtake MSF Type
- Brand new series for micro screws
- Pioneering precise screw supply
- Compact size for minimal area

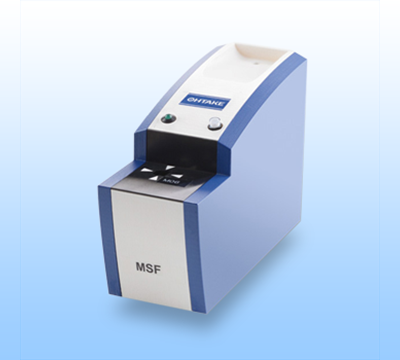

Robotic Screw Feeder MSF Type
Brand new series for micro screws
Provides automatic feeding for screws as small as M0.5
Pioneering precise screw supply
Even with miniature screw diameters less than 1.0mm
Compact size for minimal area
With an actual width of 71mm, it is ideal for applications with limited space
Brand new series for micro screws
Provides automatic feeding for screws as small as M0.5
Pioneering precise screw supply
Even with miniature screw diameters less than 1.0mm
Compact size for minimal area
With an actual width of 71mm, it is ideal for applications with limited space
| Supported screw diameter (mm) |
Main component type MSF Series |
| 0.5 | MSF-05 |
| 0.6 | MSF-06 |
| 0.7 | MSF-07 |
| 0.8 | MSF-08 |
| 1.0 | MSF-10 |
- Product name：MSF
- Dimensions：71(W)×194(D)×132(H)
- Total weight (with rail) ：Approx.2kgf
- Power supply：AC100V～240V DC15V 1A AC adapter included
- Overload protection：-
- Output signal：-
- Screw size：S0.5～S1.0
- Screw length：1～5mm
- Capacity：Approx. 15cc
- Accessories：Operation Manual, AC Adapter, hex wrench, adjustment driver, grounding cable
