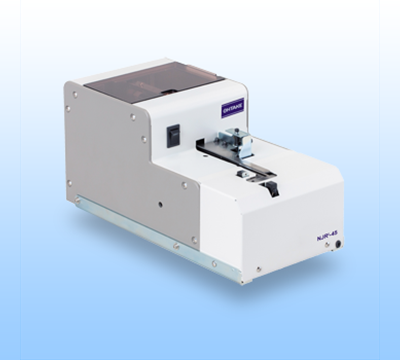

Robotic Screw Feeder Ohtake NJR Type

Robotic Screw Feeder NJR Type

Compatible with larger screws
Can be used with up to M5 screws, with 150cc storage.

Compatible with a wide range of screw types
Stable feeding supply for spring-washer screws or other standard screws.

Provides smooth and stable screw supply
Continuous screw feeding with no delays, with linear screw escaper




Supported screw diameter (mm)	Main component type					Swap rail set type
	NJ Series	NJL Series	NJR Series	NJRL Series	NJC Series	NJ Series	NJL Series	NJR Series	NJRL Series	NJC Series
2.0	NJ-2320	NJL-2320	NJR-2320	NJRL-2320	NJC-2320	R20SET	RL20SET	RR20SET	RRL20SET	R20SET
2.3	NJ-2323	NJL-2323	NJR-2323	NJRL-2323	NJC-2323	R23SET	RL23SET	RR23SET	RRL23SET	R23SET
2.6	NJ-2326	NJL-2326	NJR-2326	NJRL-2326	NJC-2326	R26SET	RL26SET	RR26SET	RRL26SET	R26SET
3.0	NJ-2330	NJL-2330	NJR-2330	NJRL-2330	NJC-2330	R30SET	RL30SET	RR30SET	RRL30SET	R30SET
3.5	NJ-4535	NJL-4535	NJR-4535	NJRL-4535	NJC-4535	R35SET	RL35SET	RR35SET	RRL35SET	R35SET
4.0	NJ-4540	NJL-4540	NJR-4540	NJRL-4540	NJC-4540	R40SET	RL40SET	RR40SET	RRL40SET	R40SET
5.0	NJ-4550	NJL-4550	NJR-4550	NJRL-4550	NJC-4550	R50SET	RL50SET	RR50SET	RRL50SET	R50SET



• Product name：NJR-23　｜　NJR-45
• Dimensions：134(W)×274(D)×139(H)
• Total weight (with rail) ：Approx. 4.2kgf
• Power supply：AC100～240V DC15V 1A AC adapter included
• Overload protection：-
• Output signal：-
• Brush overload prevention：-
• Screw size：M2.0～M3.0　｜　M3.5～M5.0
• Screw length：Up to 18㎜
• Capacity：Approx. 150cc
• Accessories：Operation Manual, AC Adapter, hex wrench, adjustment driver
