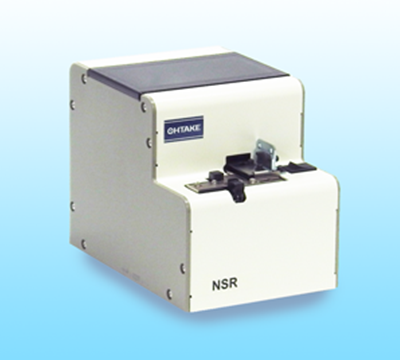

Robotic Screw Feeder Ohtake NSR Type

Robotic Screw Feeder NSR Type

One machine can be used for up to 8 different screw sizes
Rail replacement available

Smooth screw supply and long machine lifetime
Tilting and vibration-adjustment mechanism available

Compatible with different manufacturing settings
Simple installation allows applications in various production environments




Supported screw diameter (mm)	Main component type			Swap rail set type
	NSB Series	NSR Series	NSBC Series	NSB Series	NSR Series	NSBC Series
1.0	NSB-10	NSR-10	NSBC-10	SR10SET	SRR10SET	SR10SET
1.2	NSB-12	NSR-12	NSBC-12	SR12SET	SRR12SET	SR12SET
1.4	NSB-14	NSR-14	NSBC-14	SR14SET	SRR14SET	SR14SET
1.7	NSB-17	NSR-17	NSBC-17	SR17SET	SRR17SET	SR17SET
2.0	NSB-20	NSR-20	NSBC-20	SR20SET	SRR20SET	SR20SET
2.3	NSB-23	NSR-23	NSBC-23	SR23SET	SRR23SET	SR23SET
2.6	NSB-26	NSR-26	NSBC-26	SR26SET	SRR26SET	SR26SET
3.0	NSB-30	NSR-30	NSBC-30	SR30SET	SRR30SET	SR30SET



• Product name：NSR
• Dimensions：123(W)×181(D)×145(H)
• Total weight (with rail) ：Approx. 3.0kgf
• Power supply：AC100～240V DC15V 1A AC adapter included
• Overload protection：-
• Output signal：-
• Screw size：M1.0～M3.0
• Screw length：Up to 20㎜
• Capacity：Approx. 80cc
• Accessories：Operation Manual, AC Adapter, hex wrench, adjustment driver
