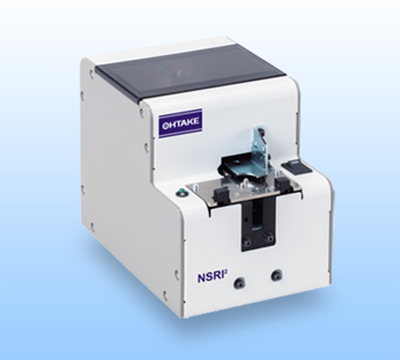

Robotic Screw Feeder Ohtake NSRI Type

Robotic Screw Feeder NSRI Type

High speed and High Precision
Provides high precision screw supply for automation applications

Higher efficiency with rotary disc escaper
Disc escaper separates screw one by one, achieves high precision without screw jamming

Available to be exchanged with 8 different rail sizes.

Compatible with different manufacturing settings
Simple installation allows applications in various production environments.




Supported screw diameter (mm)	Main component type			Swap rail set type
	NSBI Series	NSRI Series	NSRI-B Series (brushless motor type)	NSBI Series	NSRI Series	NSRI-B Series (brushless motor type)
1.0	NSBI-10	NSRI-10	NSRI-10B	BI10SET	RI10SET	RI10SET2
1.2	NSBI-12	NSRI-12	NSRI-12B	BI12SET	RI12SET	RI12SET2
1.4	NSBI-14	NSRI-14	NSRI-14B	BI14SET	RI14SET	RI14SET2
1.7	NSBI-17	NSRI-17	NSRI-17B	BI17SET	RI17SET	RI17SET2
2.0	NSBI-20	NSRI-20	NSRI-20B	BI20SET	RI20SET	RI20SET2
2.3	NSBI-23	NSRI-23	NSRI-23B	BI23SET	RI23SET	RI23SET2
2.6	NSBI-26	NSRI-26	NSRI-26B	BI26SET	RI26SET	RI26SET2
3.0	NSBI-30	NSRI-30	NSRI-30B	BI30SET	RI30SET	RI30SET2



• Product name：NSRI
• Dimensions：123(W)×181(D)×145(H)
• Total weight (with rail) ：Approx. 3.0kgf
• Power supply：AC100V～240V DC15V 1A AC adapter included
• Overload protection：-
• Output signal：-
• Delivery cycle time：0.9sec
• Screw size：M1.0～M3.0
• Screw length：Up to 20mm
• Capacity：Approx. 80cc
• Accessories：Operation Manual, AC Adapter, hex wrench, adjustment driver, grounding cable
