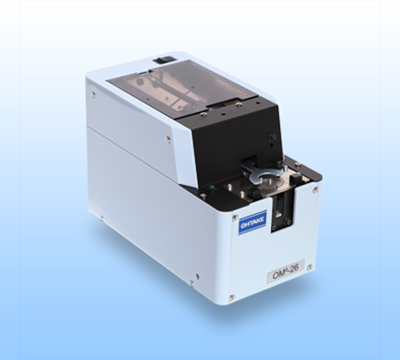

Robotic Screw Feeder Ohtake OM-26R Type

Robotic Screw Feeder OM-26R Type

Large capacity of 300cc
Can store up to 780 pieces of M3x12mm screws

Higher efficiency with rotary disc escaper
Disc escaper separates screw one by one, achieves high precision without screw jamming

Compatible with a wide range of screw types
Stable feeding supply for spring-washer screws or other standard screws.

Options available
Screw level sensor is available for automatic notification of low remaining screws, or additional hopper is available for storage expansion.




Supported screw diameter (mm)	Main component type			Swap rail set type
	OM-26M Series	OM-26R Series	OM-26RB Series (brushless motor type)	OM-26M Series	OM-26R Series	OM-26RB Series (brushless motor type)
2.0	OM-26M20	OM-26R20	OM-26RB20	OMM20SET	OMR20SET	OMR20SET2
2.3	OM-26M23	OM-26R23	OM-26RB23	OMM23SET	OMR23SET	OMR23SET2
2.6	OM-26M26	OM-26R26	OM-26RB26	OMM26SET	OMR26SET	OMR26SET2
3.0	OM-26M30	OM-26R30	OM-26RB30	OMM30SET	OMR30SET	OMR30SET2
3.5	OM-26M35	OM-26R35	OM-26RB35	OMM35SET	OMR35SET	OMR35SET2
4.0	OM-26M40	OM-26R40	OM-26RB40	OMM40SET	OMR40SET	OMR40SET2
5.0	OM-26M50	OM-26R50	OM-26RB50	OMM50SET	OMR50SET	OMR50SET2
6.0	OM-26M60	OM-26R60	OM-26RB60	OMM60SET	OMR60SET	OMR60SET2



• Product name：OM-26R
• Dimensions：119(W)×226(D)×152(H)
• Total weight (with rail) ：Approx. 3.1kgf
• Power supply：AC100～240V DC15V 1A AC adapter included
• Overload protection：-
• Output signal：-
• Delivery cycle time：0.9sec
• Screw size：M2.0~M6.0 (Due to magnetic mechanism, this product is only compatible with steel screws.)
• Screw length：Up to 25mm
• Capacity：Approx. 300cc
• Accessories：Operation Manual, AC Adapter, hex wrench, adjustment driver
