ROUND SPACER SUPPORT 201.0

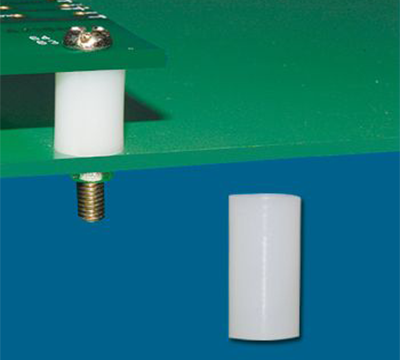

- Joint Circuit board with Chassis or other board.
- Provides distance, space and support between Circuit board and chassis.
- Suit for most types of boards.

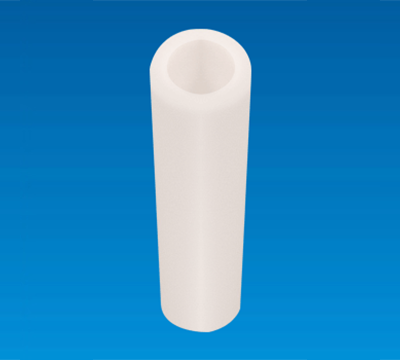

ROUND SPACER SUPPORT 201.0
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis or other board.
- Provides distance, space and support between Circuit board and chassis.
- Suit for most types of boards.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

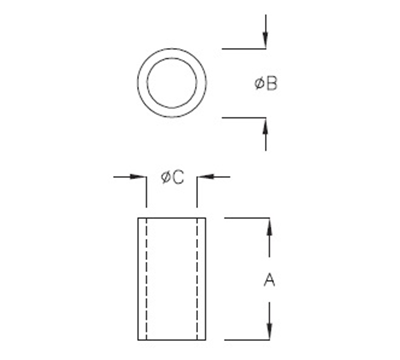

| PART NO | A | B | C | PACKAGE |
|---|---|---|---|---|
| 201 | 1.0 | 3.7 | 2.2 | 2000 |
| 201A | 1.5 | 3.7 | 2.2 | |
| 201KG | 1.6 | 2.2 | 0.8 | |
| 201JM | 1.6 | 3.6 | 2.2 | |
| 201FN | 1.6 | 4.2 | 2.7 | |
| 201C | 1.8 | 3.7 | 2.2 | |
| 201D | 1.9 | 3.0 | 2.0 | |
| 202 | 2.0 | 4.5 | 2.5 | |
| 202C | 2.0 | 3.7 | 2.2 | |
| 202F | 2.6 | 4.6 | 2.7 | |
| 202A | 2.5 | 3.7 | 2.2 | |
| 203 | 3.0 | 4.5 | 2.5 | |
| 203A | 3.0 | 3.6 | 2.2 | |
| 203C | 3.0 | 3.7 | 2.2 | |
| 203EG | 3.2 | 3.2 | 2.3 | |
| 203KJ | 3.2 | 3.6 | 2.2 | |
| 203BU | 3.2 | 4.2 | 2.7 | |
| 203M | 3.5 | 4.5 | 2.5 | |
| 203D | 3.7 | 4.5 | 2.5 | |
| 204 | 4.0 | 4.5 | 2.5 | 2000 |
| 204KT | 4.0 | 4.7 | 2.7 | |
| 204A | 4.1 | 3.6 | 2.2 | |
| 204M | 4.5 | 4.5 | 2.5 | |
| 204FP | 4.8 | 3.2 | 2.3 | |
| 204GN | 4.8 | 3.6 | 2.2 | |
| 204NJ | 4.8 | 4.2 | 2.7 | |
| 205 | 5.0 | 4.5 | 2.5 | |
| 205C | 5.5 | 4.5 | 2.5 | |
| 206 | 6.0 | 4.5 | 2.5 | |
| 206BQ | 6.4 | 3.2 | 2.3 | |
| 206AP | 6.4 | 3.6 | 2.2 | |
| 206DN | 6.4 | 4.2 | 2.7 | |
| 206CH | 6.4 | 4.8 | 2.3 | |
| 206M | 6.5 | 4.5 | 2.5 | |
| 206F | 6.6 | 4.8 | 2.8 | |
| 207 | 7.0 | 4.8 | 2.3 | |
| 207A | 7.0 | 3.7 | 2.2 | |
| 207C | 7.5 | 3.7 | 2.3 | |
| 208FJ | 7.9 | 3.6 | 2.2 | 2000 |
| 208 | 8.0 | 4.5 | 2.5 | |
| 208C | 8.5 | 4.5 | 2.5 | |
| 209 | 9.0 | 4.5 | 2.5 | |
| 209AQ | 9.5 | 3.6 | 2.2 | |
| 209C | 9.5 | 4.5 | 2.5 | |
| 210 | 10.0 | 4.5 | 2.5 | |
| 211 | 11.0 | 3.7 | 2.2 | |
| 301PW | 1.5 | 5.0 | 3.1 | |
| 301NL | 1.6 | 4.8 | 3.2 | |
| 301BR | 1.6 | 6.4 | 3.2 | |
| 301GS | 1.6 | 6.4 | 3.7 | |
| 302A | 2.0 | 6.0 | 3.0 | |
| 302C | 2.0 | 6.5 | 3.1 | |
| 302B | 2.5 | 5.0 | 3.1 | |
| 302DK | 2.0 | 8.0 | 3.5 | |
| 302JY | 2.5 | 8.0 | 3.2 | |
| 303 | 3.3 | 5.0 | 3.1 | |
| 303A | 3.0 | 6.0 | 3.1 |
| PART NO | A | B | C | PACKAGE |
|---|---|---|---|---|
| 303C | 3.5 | 5.7 | 3.1 | 2000 |
| 303D | 3.0 | 5.0 | 3.1 | |
| 303F | 2.6 | 8.0 | 3.5 | |
| 303H | 3.0 | 6.35 | 3.2 | |
| 303Q | 2.8 | 6.35 | 3.2 | |
| 303DQ | 3.2 | 4.8 | 3.2 | |
| 303HP | 3.2 | 6.4 | 3.2 | |
| 303YF | 3.2 | 6.4 | 3.7 | |
| 303RP | 3.8 | 5.2 | 3.7 | |
| 303S | 3.5 | 4.0 | 3.0 | |
| 304A | 4.0 | 5.0 | 3.2 | |
| 304 | 4.2 | 5.0 | 3.1 | |
| 304C | 4.5 | 6.0 | 3.2 | |
| 304PR | 4.8 | 4.8 | 3.2 | |
| 304HX | 4.8 | 6.4 | 3.2 | |
| 304JS | 4.8 | 6.4 | 3.7 | |
| 305 | 5.0 | 5.0 | 3.1 | |
| 305A | 5.0 | 8.0 | 3.1 | |
| 305C | 5.5 | 5.0 | 3.0 | |
| 305DM | 5.9 | 5.7 | 3.7 | |
| 306 | 6.1 | 5.0 | 3.1 | 2000 |
| 306A | 6.3 | 6.5 | 3.9 | |
| 306XF | 6.4 | 4.8 | 3.2 | |
| 306KY | 6.4 | 6.4 | 3.2 | |
| 306QS | 6.4 | 6.4 | 3.7 | |
| 306M | 6.5 | 5.0 | 3.1 | |
| 306SK | 6.0 | 8.0 | 3.3 | |
| 307 | 7.0 | 5.0 | 3.1 | |
| 307A | 7.5 | 5.0 | 3.1 | |
| 307B | 7.5 | 3.9 | 3.1 | |
| 308CW | 7.9 | 6.4 | 3.2 | |
| 308FR | 7.9 | 6.4 | 3.7 | |
| 308LT | 7.9 | 4.8 | 3.2 | |
| 308 | 8.1 | 5.0 | 3.1 | |
| 308C | 8.4 | 6.5 | 3.9 | |
| 308M | 8.5 | 5.0 | 3.1 | |
| 308A | 8.7 | 5.0 | 3.1 | |
| 309A | 9.0 | 5.0 | 3.1 | |
| 309 | 9.2 | 5.0 | 3.1 | |
| 309MS | 9.5 | 4.8 | 3.2 | |
| 309PT | 9.5 | 6.4 | 3.7 | |
| 309C | 9.6 | 7.5 | 3.5 | |
| 310 | 10.1 | 5.0 | 3.1 | |
| 311 | 11.0 | 5.0 | 3.1 | 1000 |
| 311MH | 11.1 | 4.8 | 3.2 | |
| 311BN | 11.1 | 6.4 | 3.2 | |
| 312A | 12.0 | 5.0 | 3.2 | |
| 312 | 12.3 | 5.0 | 3.1 | |
| 313 | 13.0 | 5.0 | 3.1 | |
| 314 | 14.0 | 5.0 | 3.1 | |
| 315 | 15.0 | 5.0 | 3.1 | |
| 316 | 16.0 | 5.0 | 3.1 | |
| 317 | 17.0 | 5.0 | 3.1 | |
| 318 | 18.3 | 5.0 | 3.1 | |
| 319 | 19.0 | 5.0 | 3.1 | |
| 320 | 20.0 | 5.0 | 3.1 | |
| 324 | 24.0 | 5.0 | 3.1 | 500 |
| 331 | 31.0 | 5.0 | 3.1 | |
| 338 | 38.0 | 5.9 | 3.1 |
