Round Water-resistant Connectors (M12 Threads) OMRON XS2R-D423-1
M12 Threads Water-resistant Connectors, for DC, T-shaped, 4 pole
Type：Water-resistant Connectors
Application：for DC
Number of poles：4 pole
Location of lead output：T-shaped
Fastening method：M12 Threads
Type：Water-resistant Connectors
Application：for DC
Number of poles：4 pole
Location of lead output：T-shaped
Fastening method：M12 Threads
Ratings / Performance

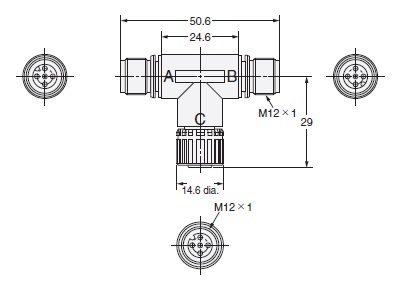

Dimensions
-omron-xs2r-d423-1.jpg "round-water-resistant-connectors-(m12-threads)-omron-xs2r-d423-1")
| Type | Water-resistant Connectors |
|---|---|
| Application | for DC |
| Number of poles | 4 pole |
| Plug/socket | Socket/Plug |
| Location of lead output | T-shaped |
| Fastening method | M12 Threads |
| Rated voltage | 250 VDC |
| Rated current | 4 A |
| Contact resistance | 40 mΩ max. (20 mV max, 100 mA max.) |
| Ambient temperature range (Operating) | -25 to 70 ℃ |
| Ambient humidity range (Operating) | 20 to 85% |
| Insulation resistance | 1000 MΩ min. (at 500 VDC) |
| Dielectric strength | 1,500 VAC 1 min (Leakage current 1mA max.) |
| Degree of protection | IP67 |
| Material | Pin block: PA resin Contact: Brass Fixture: Aluminum O-ring: Rubber parts |
| Insertion durability | 200 time |
Dimensions
