Round Water-resistant Connectors (M12 Threads) OMRON XS2R-D426-B11-F
M12 Threads Water-resistant Connectors, for DC, Cable length: 0.5 m, Y-shaped, 4 pole
Type：Water-resistant Connectors
Application：for DC
Number of poles：4 pole
Location of lead output：Y-shaped
Fastening method：M12 Threads
Cable length：0.5 m
Type：Water-resistant Connectors
Application：for DC
Number of poles：4 pole
Location of lead output：Y-shaped
Fastening method：M12 Threads
Cable length：0.5 m
Ratings / Performance

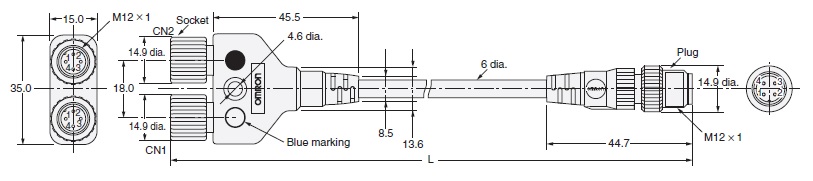

Dimensions
-omron-xs2r-d426-b11-f.jpg "round-water-resistant-connectors-(m12-threads)-omron-xs2r-d426-b11-f")
| Type | Water-resistant Connectors | |
|---|---|---|
| Application | for DC | |
| Number of poles | 4 pole | |
| Plug/socket | Plug/socket | |
| Location of lead output | Y-shaped | |
| Fastening method | M12 Threads | |
| Rated voltage | 250 VDC | |
| Rated current | 4 A | |
| Contact resistance | 40 mΩ max. (20 mV max, 100 mA max.) | |
| Cable specifications | Outer diameter | 6 mm dia. |
| Cable length | 0.5 m | |
| Ambient temperature range (Operating) | -25 to 70 ℃ | |
| Ambient humidity range (Operating) | 20 to 85% | |
| Insulation resistance | 1000 MΩ min. (at 500 VDC) | |
| Dielectric strength | 1,500 VAC 1 min (Leakage current 1mA max.) | |
| Degree of protection | IP67 | |
| Material | Pin block: PA resin Contact: Copper alloy (gold plating) Fixture: Copper alloy (Nickel platin) O-ring: Rubber parts |
|
| Insertion durability | 200 time | |
Dimensions
