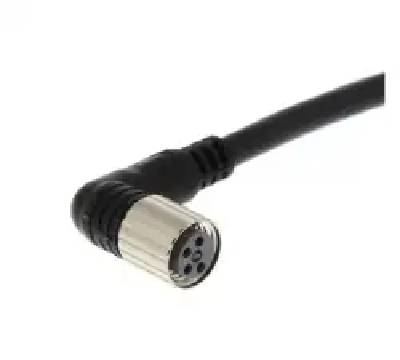

Round Water-resistant Connectors (M12 Threads) OMRON XS3F-M422-402-A
M8 Screw-on Water-resistant Connectors, Standard cable (2 m), Right-angle, 4 pole
Type:Water-resistant Connectors
Number of poles:4 pole
Location of lead output:Right-angle
Fastening method:M8 Screw-on
Cable length:2 m
Type:Water-resistant Connectors
Number of poles:4 pole
Location of lead output:Right-angle
Fastening method:M8 Screw-on
Cable length:2 m
Ratings / Performance

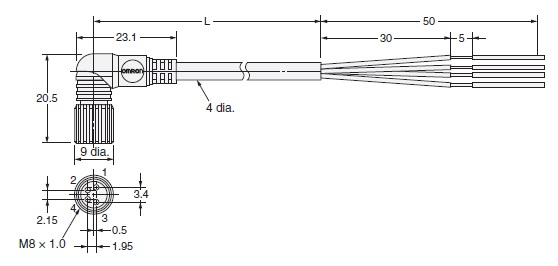

Dimensions
![round-water-resistant-connectors-(m12-threads)-omron-xs3f-m422-402-a-2 round-water-resistant-connectors-(m12-threads)-omron-xs3f-m422-402-a-2](https://www.plastlist.com/upload/catalog_b/round-water-resistant-connectors-(m12-threads)-omron-xs3f-m422-402-a-2.jpg)
Type | Water-resistant Connectors | |
---|---|---|
Number of poles | 4 pole | |
Plug/socket | Socket | |
Location of lead output | Right-angle | |
Fastening method | M8 Screw-on | |
Rated voltage | 125 VDC | |
Rated current | 1 ADC | |
Contact resistance | 40 mΩ max. (20 mV max, 100 mA max.) | |
Cable specifications | Type | Standard cable |
Outer diameter | 4 mm dia. | |
Number of wires | 4 cores | |
Cable length | 2 m | |
Ambient temperature range (Operating) | -25 to 70 ℃ | |
Ambient humidity range (Operating) | 20 to 85% RH | |
Insulation resistance | 1000 MΩ min. (at 500 VDC) | |
Dielectric strength | 1,000 VAC 1 min (Leakage current 1mA max.) | |
Degree of protection | IP67 | |
Applicable connector | XS3M (M8/S8) XS3H (M8) XS3W (M8) |
|
Material | Pin block: PBT resin Contact: Phosphor bronze/nickel base (gold plating) Fixture: Brass/nickel plating or SUS316L O-ring: Rubber parts Cover: Soft PBT resin |
|
Insertion durability | 200 time |
Dimensions
![round-water-resistant-connectors-(m12-threads)-omron-xs3f-m422-402-a-2 round-water-resistant-connectors-(m12-threads)-omron-xs3f-m422-402-a-2](https://www.plastlist.com/upload/catalog_b/round-water-resistant-connectors-(m12-threads)-omron-xs3f-m422-402-a-2.jpg)
