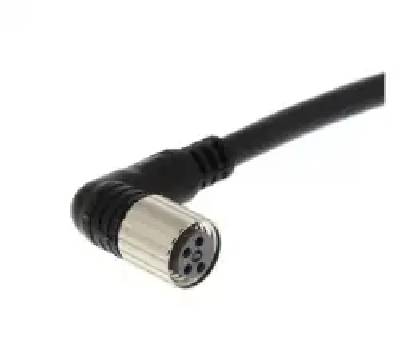

Round Water-resistant Connectors (M12 Threads) OMRON XS3F-M422-405-R
M8 Screw-on Water-resistant Connectors, Robot Cable (5 m), Right-angle, 4 pole
Type：Water-resistant Connectors
Number of poles：4 pole
Location of lead output：Right-angle
Fastening method：M8 Screw-on
Cable length：5 m
Type：Water-resistant Connectors
Number of poles：4 pole
Location of lead output：Right-angle
Fastening method：M8 Screw-on
Cable length：5 m
Ratings / Performance

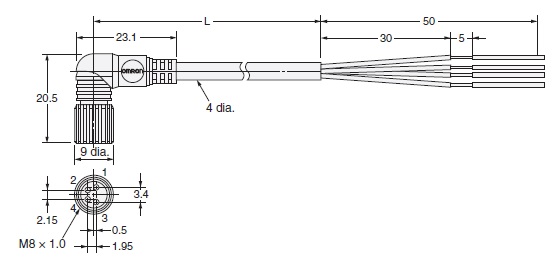

Dimensions
-omron-xs3f-m422-405-r-2.jpg "round-water-resistant-connectors-(m12-threads)-omron-xs3f-m422-405-r-2")
| Type | Water-resistant Connectors | |
|---|---|---|
| Number of poles | 4 pole | |
| Plug/socket | Socket | |
| Location of lead output | Right-angle | |
| Fastening method | M8 Screw-on | |
| Rated voltage | 125 VDC | |
| Rated current | 1 ADC | |
| Contact resistance | 40 mΩ max. (20 mV max, 100 mA max.) | |
| Cable specifications | Type | Robot Cable |
| Outer diameter | 4 mm dia. | |
| Number of wires | 4 cores | |
| Cable length | 5 m | |
| Ambient temperature range (Operating) | 0 to 70 ℃ | |
| Ambient humidity range (Operating) | 20 to 85% RH | |
| Insulation resistance | 1000 MΩ min. (at 500 VDC) | |
| Dielectric strength | 1,000 VAC 1 min (Leakage current 1mA max.) | |
| Degree of protection | IP67 | |
| Applicable connector | XS3M (M8/S8) XS3H (M8) XS3W (M8) |
|
| Material | Pin block: PBT resin Contact: Phosphor bronze/nickel base (gold plating) Fixture: Brass/nickel plating or SUS316L O-ring: Rubber parts Cover: Soft PBT resin |
|
| Insertion durability | 200 time | |
Dimensions
