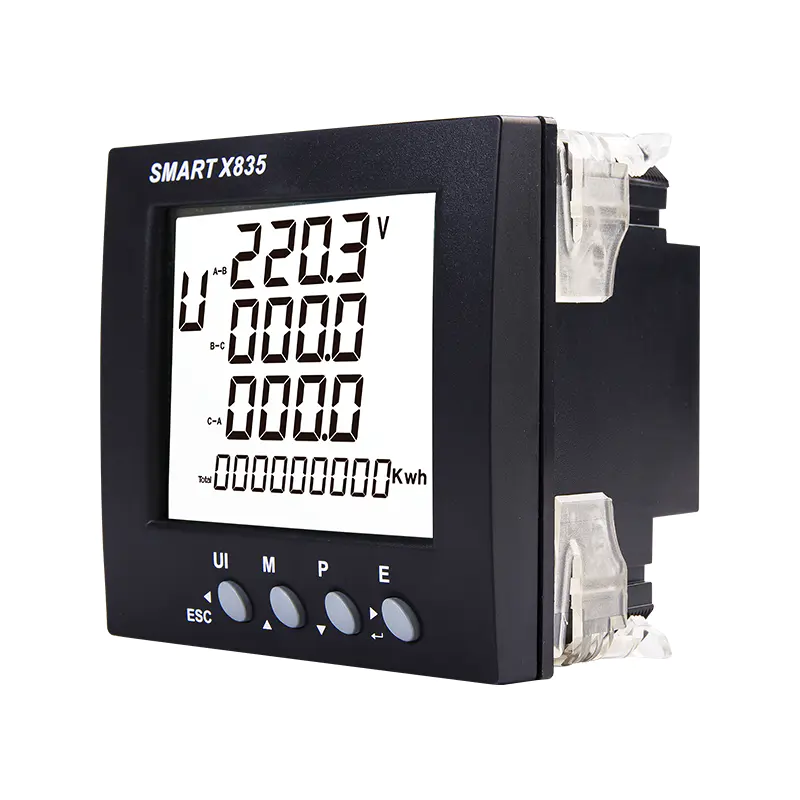

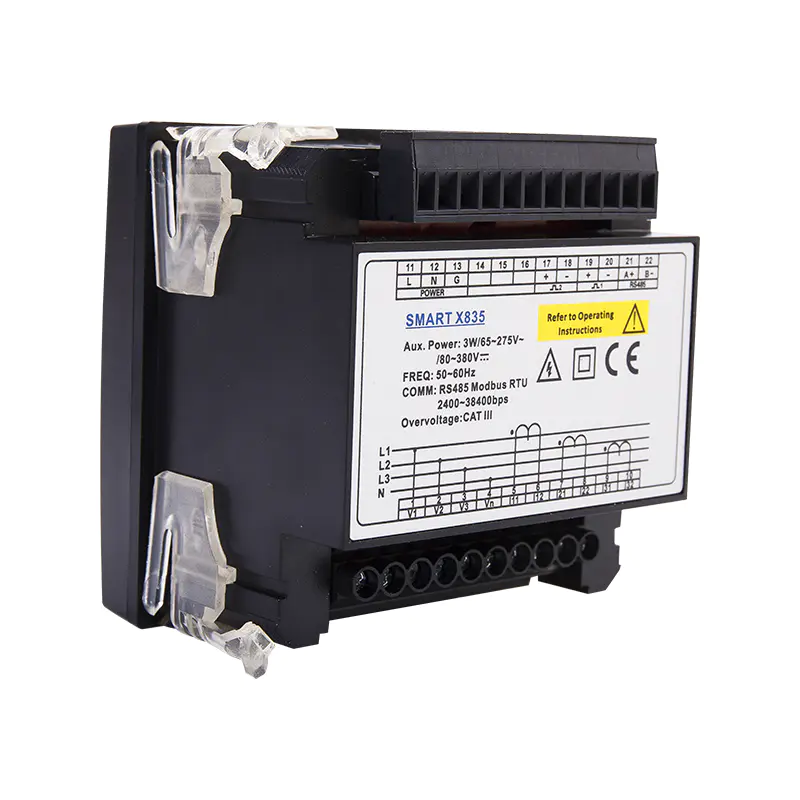

Rs485 Modbus Panel Type 96x96 Multi-function Power Analyzer Eastron Smart X835
- Crest factor & Key factor
- Multi-parameters measured
- RS485 Modbus RTU and Pulse Outputs
- CT and PT connected
- Multi-tariffs available
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS including harmonics on three phase AC system (3P, 3P+N) |
|
|
Measurement Accuracy |
Active Power |
1.0% of range maximum |
|
Reactive Power |
1.0% of range maximum |
|
|
Apparent Power |
1.0% of range maximum |
|
|
Active Energy |
IEC 62053-21 Class 1 |
|
|
Reactive Energy |
IEC62053-23 Class 2 |
|
|
Frequency |
0.2% of mid-frequency |
|
|
Current |
0.5% of range maximum |
|
|
Voltage |
0.5% of range maximum |
|
|
Power Factor |
1% of unity (0.01) |
|
|
THD |
2% to 63rd harmonic |
|
|
Input & Output |
||
|
Input-Current |
CT Secondary |
1A/5A |
|
CT Primary |
1-9999A |
|
|
Min Current |
0.25A |
|
|
Starting Current |
20mA |
|
|
Output |
Contact Rating Current |
2-27mA at 27V DC |
|
Contact Rating Voltage |
5-27V DC |
|
|
Pulse Width |
60 / 100 / 200 ms |
|
|
Pulse Output 1 |
0.01 / 0.1 / 1 / 10 / 100 kWh/kVArh |
|
|
Pulsed Output 2 |
3200IMP/kWh |
|
|
RS485 Modbus Communication |
|
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
2400bps~38400bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
