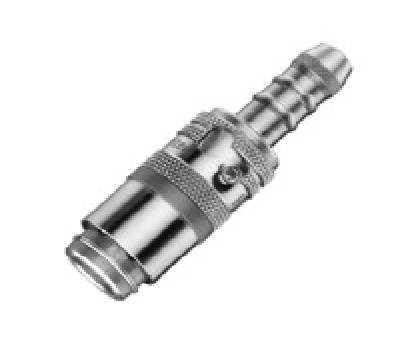

Safety coupling, open flow
With its safety couplings Z80700HT/... to Z80801HT/..., HASCO is setting new safety standards in mould
temperature control. They are ideal for high heating and cooling applications with hot water or heating/cooling oil.
Decoupling can be easily performed thanks to the forced rotating guide on the locking sleeve, but nevertheless
requires an intentional manual unlocking movement. Unintented unlocking is not possible.
| p | l2 | l1 | d6 | d4 | d2 | d1 | Product |
|---|---|---|---|---|---|---|---|
| 25 | 22,5 | 61 | 18 | 9 | 6 | 9 |
Z80801HT/9
|
| 25 | 25 | 63 | 23,5 | 13,5 | 9 | 13 |
Z80801HT/13
|
With its safety couplings Z80700HT/... to Z80801HT/..., HASCO is setting new safety standards in mould
temperature control. They are ideal for high heating and cooling applications with hot water or heating/cooling oil.
Decoupling can be easily performed thanks to the forced rotating guide on the locking sleeve, but nevertheless
requires an intentional manual unlocking movement. Unintented unlocking is not possible.
- Automatic safety lock to prevent unintentional decoupling
- Locking sleeve with forced rotating guide and optical colour coding in the locked state
- High-temperature sealing rings for maximum load
- Optionally with free throughput or locking with connecting thread or hose nozzle
- Available in cooling system diameters of 9 and 13mm
