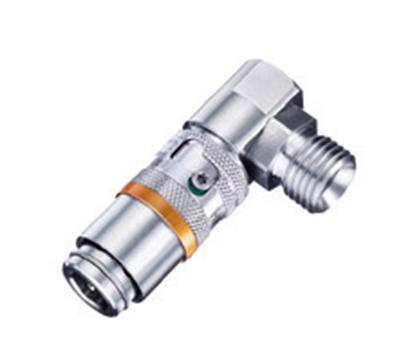

Safety coupling, Stainless Steel, with valve, 90° angled
- Hasco Z80700HT/d4xd7xw1/Mat
- 1.4305
- max. 25 bar
Safety coupling, Stainless Steel, with valve, 90° angled

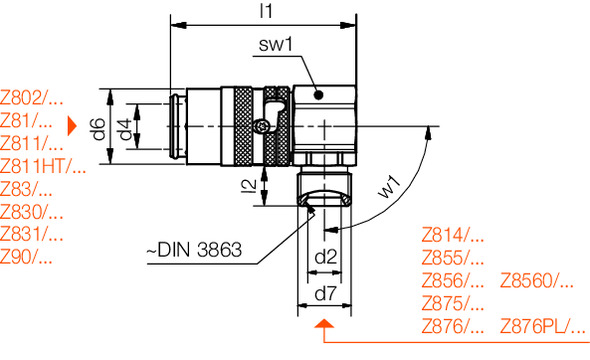

| p | sw1 | l2 | l1 | d6 | d2 | d4 | d7 | w1 | Mat | Product |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 15 | 12 | 56 | 18 | 6 | 9 | M14x1,5 | 90 | VA |
Z80700HT/9x14x1,5x90/VA
|
| 25 | 17 | 12 | 55,5 | 23,5 | 9 | 13 | M16x1,5 | 90 | VA |
Z80700HT/13x16x1,5x90/VA
|
