Mold Parts

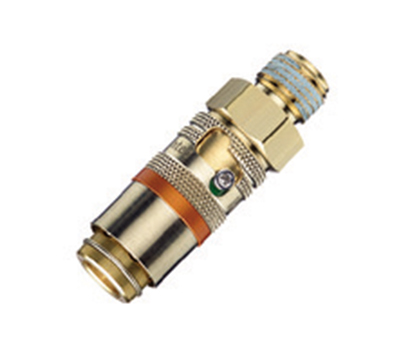

Safety coupling, with valve

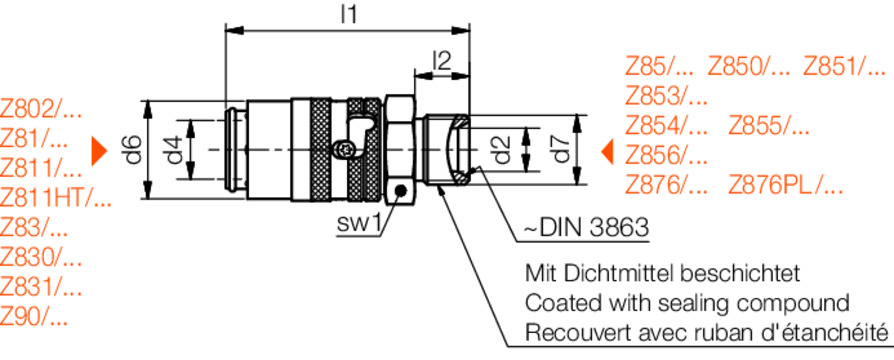

![249731649828882005-DESKTOP-DEFAULT 249731649828882005-DESKTOP-DEFAULT](https://www.plastlist.com/upload/catalog_b/249731649828882005-DESKTOP-DEFAULT.jpg)
![249731649828882005-DESKTOP-DEFAULT 249731649828882005-DESKTOP-DEFAULT](https://www.plastlist.com/upload/catalog_b/249731649828882005-DESKTOP-DEFAULT.jpg)
p | sw1 | l2 | l1 | d6 | d2 | d4 | d7 | Product |
---|---|---|---|---|---|---|---|---|
25 | 17 | 11 | 56,5 | 18 | 6 | 9 | G1/4 |
Z80700HT/9xG1/4
|
25 | 19 | 11 | 56,5 | 18 | 8 | 9 | G3/8 |
Z80700HT/9xG3/8
|
25 | 17 | 9,5 | 51 | 17,2 | 6 | 9 | M14x1,5 |
Z80700HT/9x14x1,5
|
25 | 22 | 12,5 | 56 | 23,5 | 9 | 13 | G3/8 |
Z80700HT/13xG3/8
|
25 | 22 | 9 | 60 | 22,5 | 9 | 13 | M16x1,5 |
Z80700HT/13x16x1,5
|
25 | 22 | 12,5 | 56 | 23,5 | 9 | 13 | M18x1,5 |
Z80700HT/13x18x1,5
|
