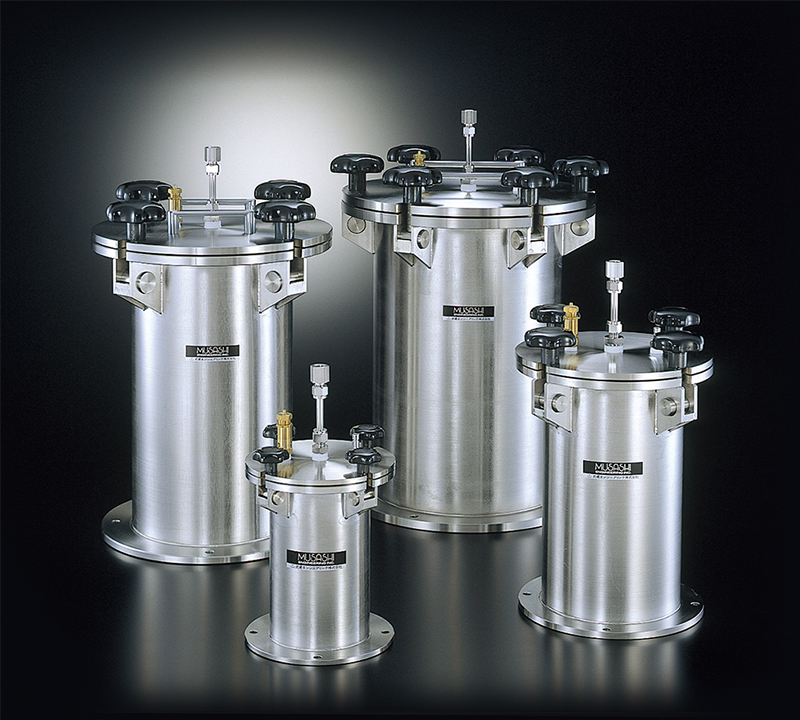

Safety lock tank Musashi SST
- SST-[] L
- Musashi original tank designed for safety with excellent versatility.
- Can be used for a wide range of fluids from low-to high- viscosity materials.
- The wide opening makes it easy to install an agitator or similar device.
- Can be used as 2 types: direct fluid material feed type, or internal container type.
- Customizable.
Safety lock tank
＊ The safety valve pressure is set at 0.2/0.5 MPa.

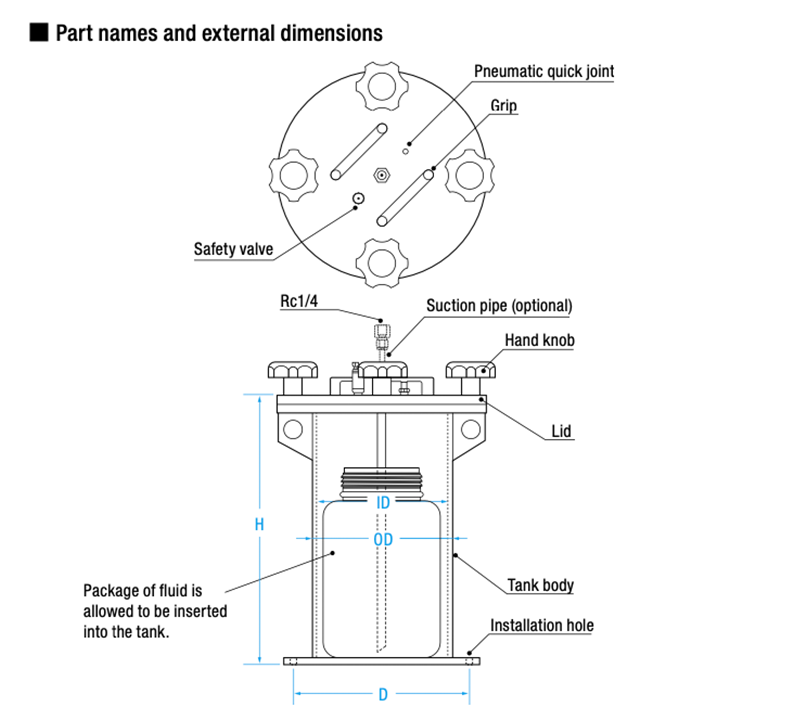

| Capacity (L) | Model | External dimensions (mm) I | Installation hole pitch (mm) | Installation hole diameter (mm) | Weight (kg) | Material | Pressure | Standard accessories | ||
| H | ID | OD | D | |||||||
| 1.7 | SST-1.7 L | 207 | φ110 | φ114 | 150 | 4-φ9 | 4.2 | Stainless steel | 0.5 MPa | • O-ring (Fluororubber) • Safety valve ＊ • Pneumatic quick joint |
| 2.2 | SST-2.2 L | 257 | φ110 | φ114 | 150 | 4-φ9 | 4.5 | |||
| 5.5 | SST-5.5 L | 309 | φ158 | φ165 | 200 | 4-φ9 | 11.5 | |||
| 6.2 | SST-6.2 L | 349 | φ158 | φ165 | 200 | 4-φ9 | 12.0 | |||
| 12.7 | SST-12.7 L | 411 | φ208 | φ216 | 260 | 4-φ11 | 25.6 | |||
| 20.3 | SST-20.3 L | 443 | φ254 | φ267 | 310 | 4-φ11 | 42.4 | |||
| 38.5 | SST-38.5 L | 465 | φ343 | φ356 | 400 | 4-φ11 | 69.0 | |||
