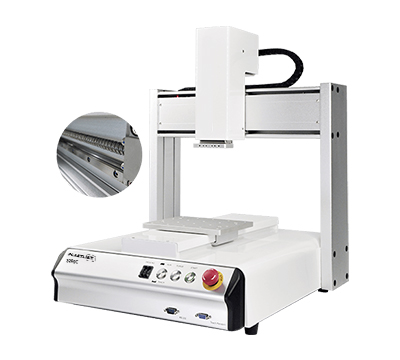

SC Series Screw Dispensing Robot 320SC
Features

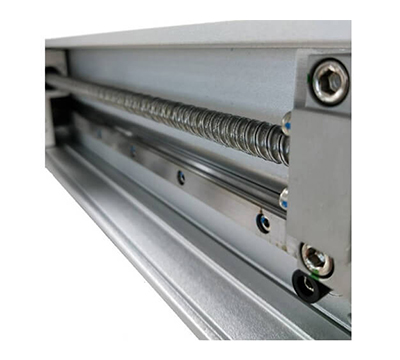

- X/Y/Z-axis ball screw, increase robot stability and repeatability.
- Servo motor driven, accurately movement.
- Dot, Lines, Arc etc. and 3D dispensing path is available.
- A hand-held Teach Pendant is provided for simple and intuitive
- programming functions.
- SRE software is available for CAD file input (optional).
Specification
| Model | 320SC | 420SC |
|---|---|---|
| Working Area X / Y / Z (mm) | 320 / 350 / 100 | 420 / 350 / 100 |
| Load Worktable Y-Axis / Z-Axis | 10 kg / 5 kg | |
| Maximum Speed XY / Z (mm/sec) | 0.1 ~ 600 / 300 | |
| Resolution | 0.001 mm / Axis | |
| Repeatability | +/- 0.01 mm / Axis | |
| Data Memory Capacity | 4000 steps for each program; Unlimited programs | |
| Display | TFT | |
| Drive System / Stepping Motor | DC servo motor | |
| Motion Control | PTP & CP | |
| Linear / Circular Interpolation | 3 axis | |
| Teaching Method | Teach pendant | |
| I/O Signals | 8 Inputs / 8 Outputs | |
| Power Supply | 100 ~ 230 VAC , 320 W | |
| Working Temperature | 0 - 40°C | |
| Relative Humidity (no condensation) | 20 - 90% No condensation | |
| Dimensions (WxDxH mm) | 482 x 499 x 593 | 585 x 599 x 597 |
| Robot Weight | 30 kg | 40 kg |
