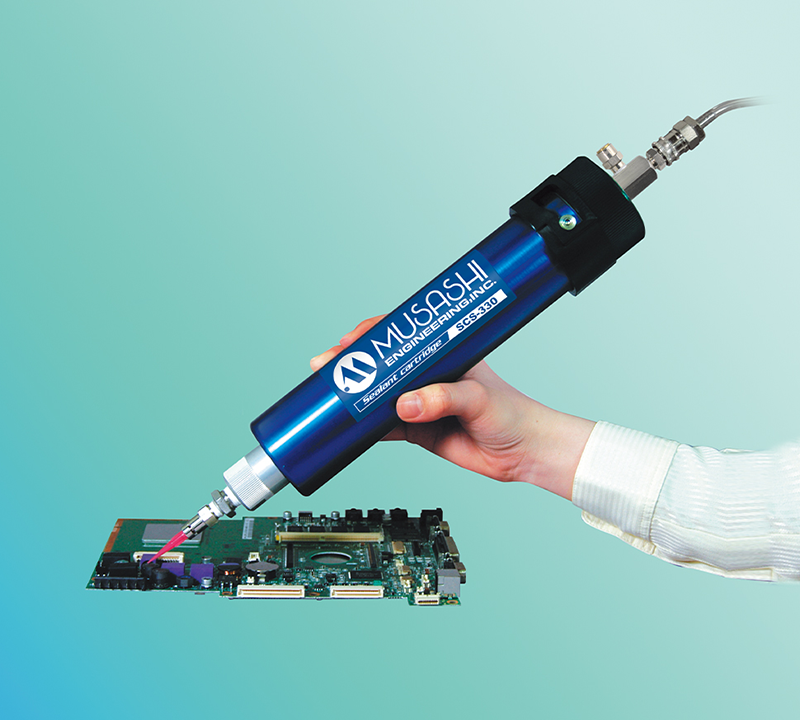

Sealant cartridge Musashi SCS-330 SCS-P
Direct constant volume dispensing with commercially available sealant
This cartridge is used for dispensing with a commercially available 330 mL sealant.
This cartridge is used for dispensing with a commercially available 330 mL sealant.
- SCS-330-[]
- SCS-P-[]
Sealant cartridge (former: sealant cartridge set (Resin specification))
Note:
1. Always applied pressure: 0.5MPa or less.
2. The sealant cartridge consists of a cartridge cap, cartridge holder, O-ring, tip adapter, and needle adapter.
Sealant cartridge components
Note:
The tip adapter is selectable from six types (TB, TR, S, TS, MI and MO) according to the material manufacturer's sealant to be used. Please contact our sales department.
Consumable parts/options
* Component count: 2 pieces
| Item name | Model | Weight | Minimum Order Quantity | |
| Sealant cartridge | [Type S] | SCS-330-S | 570 g | 1 set |
| [Type TB] | SCS-330-TB | 570 g | 1 set | |
| [Type TR] | SCS-330-TR | 570 g | 1 set | |
| [Type TS] | SCS-330-TS | 580 g | 1 set | |
| [Type MI] | SCS-330-MI | 580 g | 1 set | |
| [Type MO] | SCS-330-MO | 570 g | 1 set | |
| Sealant cartridge | [Type S with hook] | SCS-330-S-HK | 580 g | 1 set |
| [Type TB with hook] | SCS-330-TB-HK | 580 g | 1 set | |
| [Type TR with hook] | SCS-330-TR-HK | 580 g | 1 set | |
| [Type TS with hook] | SCS-330-TS-HK | 590 g | 1 set | |
| [Type MI with hook] | SCS-330-MI-HK | 590 g | 1 set | |
| [Type MO with hook] | SCS-330-MO-HK | 580 g | 1 set |
1. Always applied pressure: 0.5MPa or less.
2. The sealant cartridge consists of a cartridge cap, cartridge holder, O-ring, tip adapter, and needle adapter.
Sealant cartridge components
| Item name | Model (former model) | Material | Minimum Order Quantity | |
| Cartridge cap | [Without hook] | SCS-P-001-1 | PBT, Polyacetal, Stainless steel, 1 Brass, NBR, Fluororubber | 1 |
| [With hook] | SCS-P-001-2 | 1 | ||
| Cartridge holder [sealant use] | SCS-P-002-1 | Aluminum alloy (anodized), 1 Stainless steel | 1 | |
| O-ring | ORG-20-V-B-1 (SCS-P-003-1) | Fluororubber | 1 | |
| Tip adapter | [Type TB] | SCS-P-004-1 | Aluminum alloy (anodized), 1 Fluororubber 1 | 1 |
| [Type S] | SCS-P-004-3 | 1 | ||
| [Type TR] | SCS-P-004-5 | 1 | ||
| [Type TS] | SCS-P-004-4 | 1 | ||
| [Type MI] | SCS-P-004-6 | 1 | ||
| [Type MO] | SCS-P-004-7 | 1 | ||
| Needle adapter [No.11] | P-NADP-11 (NA-2) | Brass (Nickel plated) | 1 | |
The tip adapter is selectable from six types (TB, TR, S, TS, MI and MO) according to the material manufacturer's sealant to be used. Please contact our sales department.
Consumable parts/options
| Item name | Model (former model) | Material | Minimum Order Quantity | |
| Packing | [No.23] | P-PKG-23 (SCS-P-001-1B) | Fluororubber | 1 |
| [No.15] | P-PKG-15 (SCS-P-004-1A) | Fluororubber | ||
| Seal spring [for cartridge cap] | P-SSP-1 (SCS-P-001-1A) | Stainless steel | ||
| Seal retainer [for cartridge cap] | SCS-P-001-1C | Polyacetal | ||
| Screw [No.17] | P-SCW-17 (SCS-P-001-1D) | Stainless steel | ||
| O-ring | [φ20 Material V Color B #1] | ORG-20-V-B-1 (SCS-P-003-1) | Fluororubber | |
| [φ16 Material V Color B #1] only for TS | ORG-16-V-B-1 (SCS-P-004-4A) | Fluororubber | ||
| [φ14 Material V Color B #1] only for TS | ORG-14-V-B-1 (SCS-P-004-4B) | Fluororubber | ||
| Cartridge cap hook* | SCS-P-005-1 | - | ||
