SPECIFICATIONS
Operating frequency(mechanical):120 Operation / mim
Operating frequency(electrical):
10~30 Operation / mim
Contact resistance:
100m Ω(max)
Insulation resistance(at 500 VDC)
100M Ω(Min)
Service life(mechanical)
Min.1,000,000 Operations
Service life(electrical)
Min.10,000 Operations
RATING
0.1A/3A/5A 125/250VAC,3A 24VDCAPPLICATION
AutomotiveAir conditioner
communication
Electric tooth brush
toys
DIMENSIONS

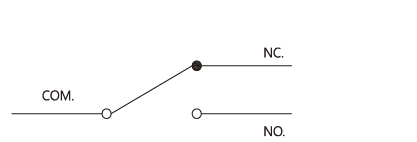

CONTACT CONFIGURATION
.png "DFW-contact_500 (1)")
OPERATING FORCE
ORDER INFORMATION
TERMINAL TYPES
OPERATING CHARACTERISTICS
