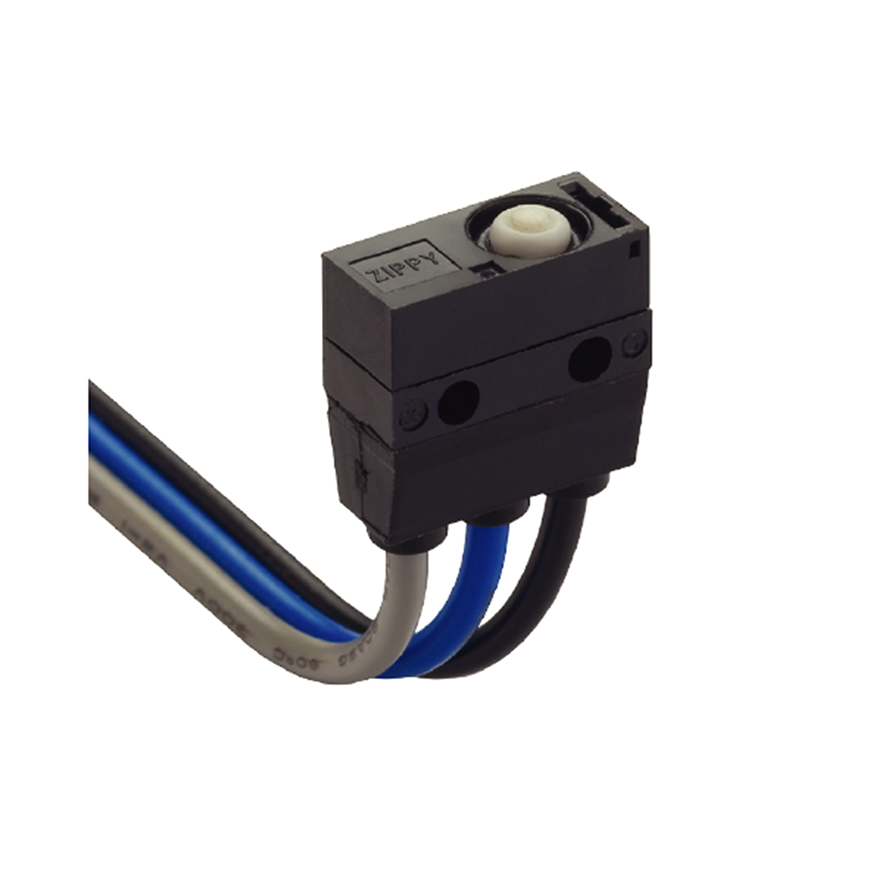

Sealed Water Proof Switches (DFW(IP67) Series)

DFW(IP67) Series

Specifications
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   100m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min. 1,000,000 Operations
Service life(electrical)
   Min. 10,000 Operations

Rating
0.1A/3A/5A 125/250VAC,3A 24VDC
Application
Automotive
Air conditioner
communication
Electric tooth brush
toys

Dimensions
Unless otherwise specitied, a tolerance of ±0.4mm applies to all dimensions.
