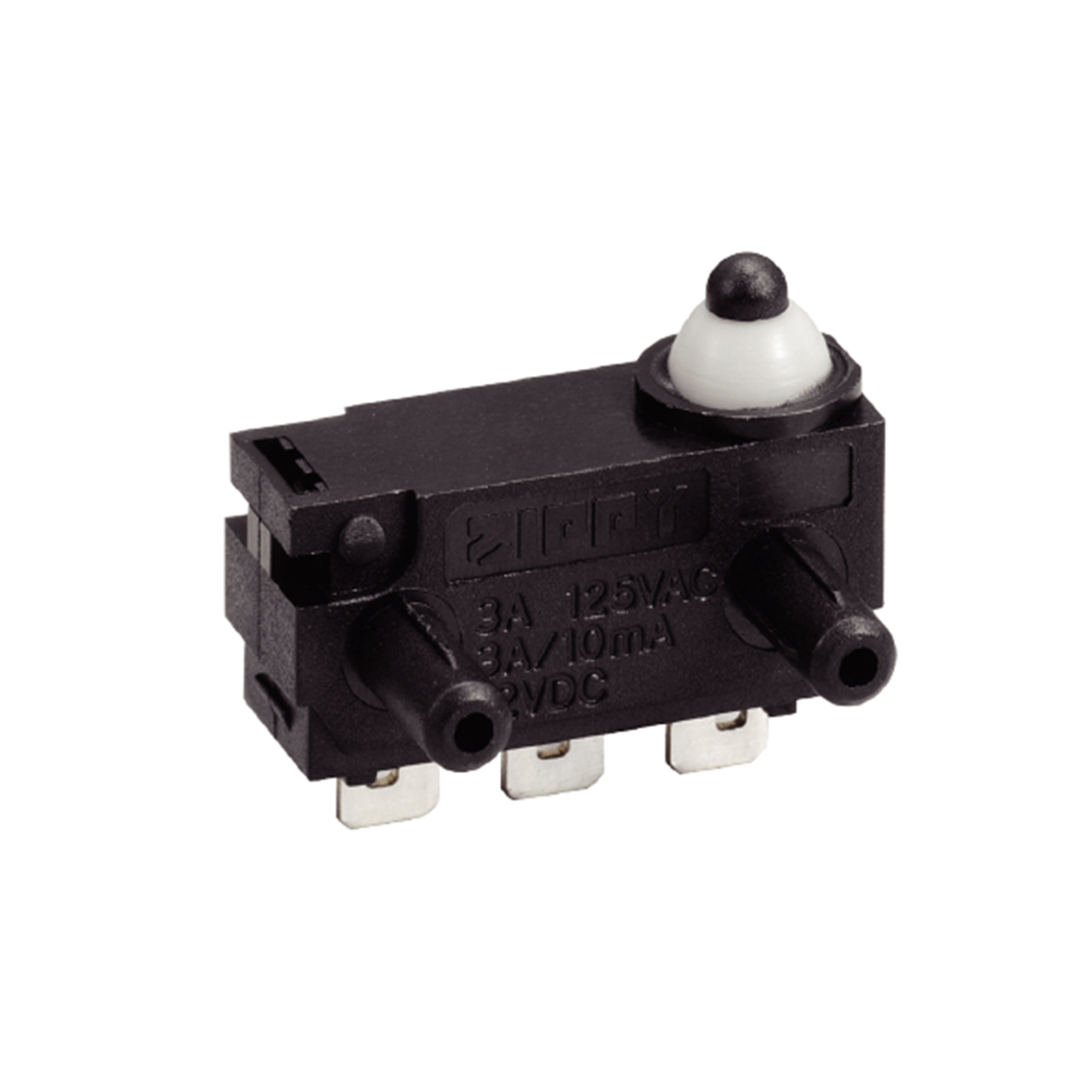

Sealed Water Proof Switches (DW Series)

DW Series

Specifications
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   100m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min. 500,000 Operations
Service life(electrical)
   3A-Min. 6,000 Operations
Degree Of Protection
   IP67 (excluding the terminals on terminal models)
   ※ For IP67 option, please contact your ZIPPY
   sales representative.

Rating
3A 125VAC;10mA/3A 12VDC
Application
1. Industrial and automotive applications
detection of door opening and closing and shift lever position etc.
2. Household appliances
propane stoves, vacuum cleaners, washing machines, air conditioners etc.
3. Security system

Dimensions
Unless otherwise specitied, a tolerance of ±0.4mm applies to all dimensions.
