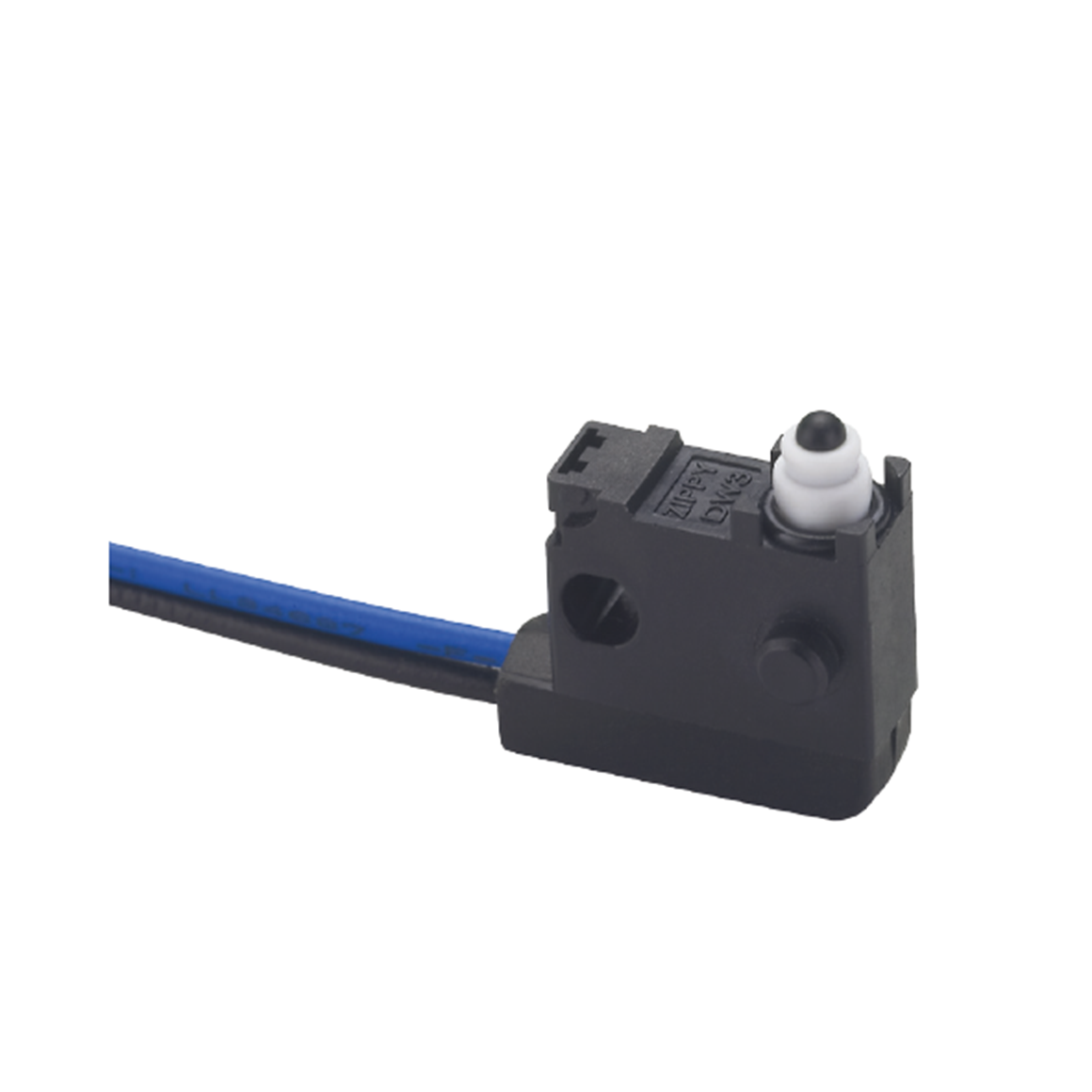

DW3(IP67) Series
Specifications
Operating frequency(electrical):
Max.120 Operation / mim
Contact resistance:
Max.1 Ω(max)
Service life(electrical)
50mA/1mA-Min.500,000 Operations
Rating
0.1A 30VDC, 0.05A 16VDC, 0.001A 5VDC
Application
1. Automobiles(detection of door opening and closing and shift lever postion, etc.)
2. Household appliances(propane stoves,vacuum cleaners, air conditioners Washing machines, etc.)
Specifications
Operating frequency(electrical):
Max.120 Operation / mim
Contact resistance:
Max.1 Ω(max)
Service life(electrical)
50mA/1mA-Min.500,000 Operations
Rating
0.1A 30VDC, 0.05A 16VDC, 0.001A 5VDC
Application
1. Automobiles(detection of door opening and closing and shift lever postion, etc.)
2. Household appliances(propane stoves,vacuum cleaners, air conditioners Washing machines, etc.)
Dimensions
Unless otherwisespecitied, a tolerance of ±0.4mm applies to all dimensions.
Contact Configuration
Order Information
