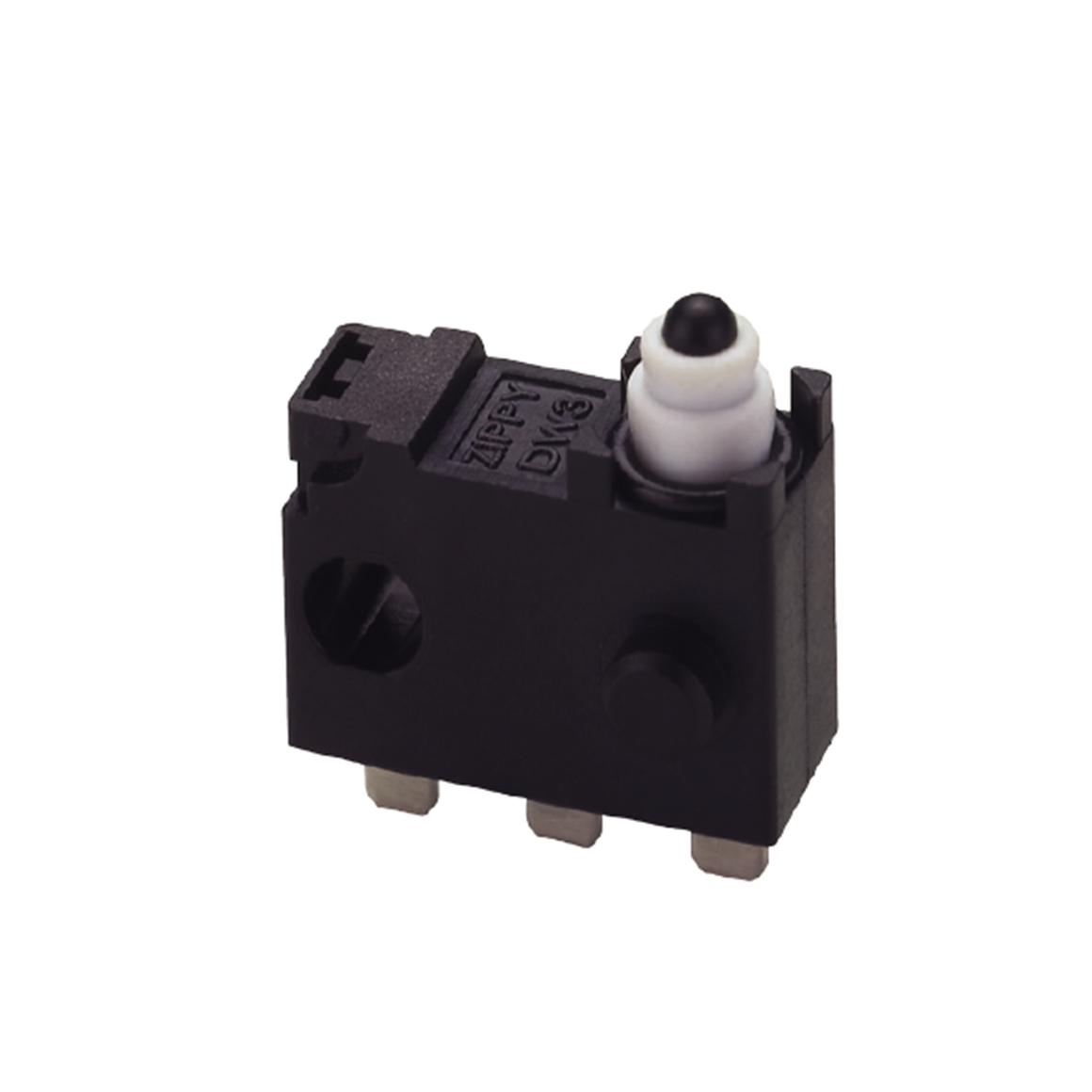

DW3 Series
Specifications
Operating frequency(electrical):
Max. 120 Operation / mim
Contact resistance:
Max. 1 Ω(max)
Service life(electrical)
50mA/1mA-Min.500,000 Operations
Degree Of Protection
IP67 (excluding the terminals on terminal models)
※ For IP67 option, please contact your ZIPPY
sales representative.
Rating
0.1A 30VDC, 0.05A 16VDC, 0.001A 5VDC
Application
1. Industrial and automotive applications
detection of door opening and closing and shift lever position etc.
2. Household appliances
propane stoves, vacuum cleaners, washing machines, air conditioners etc.
マイクロスイッチ ASQ1
Specifications
Operating frequency(electrical):
Max. 120 Operation / mim
Contact resistance:
Max. 1 Ω(max)
Service life(electrical)
50mA/1mA-Min.500,000 Operations
Degree Of Protection
IP67 (excluding the terminals on terminal models)
※ For IP67 option, please contact your ZIPPY
sales representative.
Rating
0.1A 30VDC, 0.05A 16VDC, 0.001A 5VDC
Application
1. Industrial and automotive applications
detection of door opening and closing and shift lever position etc.
2. Household appliances
propane stoves, vacuum cleaners, washing machines, air conditioners etc.
マイクロスイッチ ASQ1
Dimensions
Contact Configuration
Order Information
Terminal Types
Operating Characteristics
