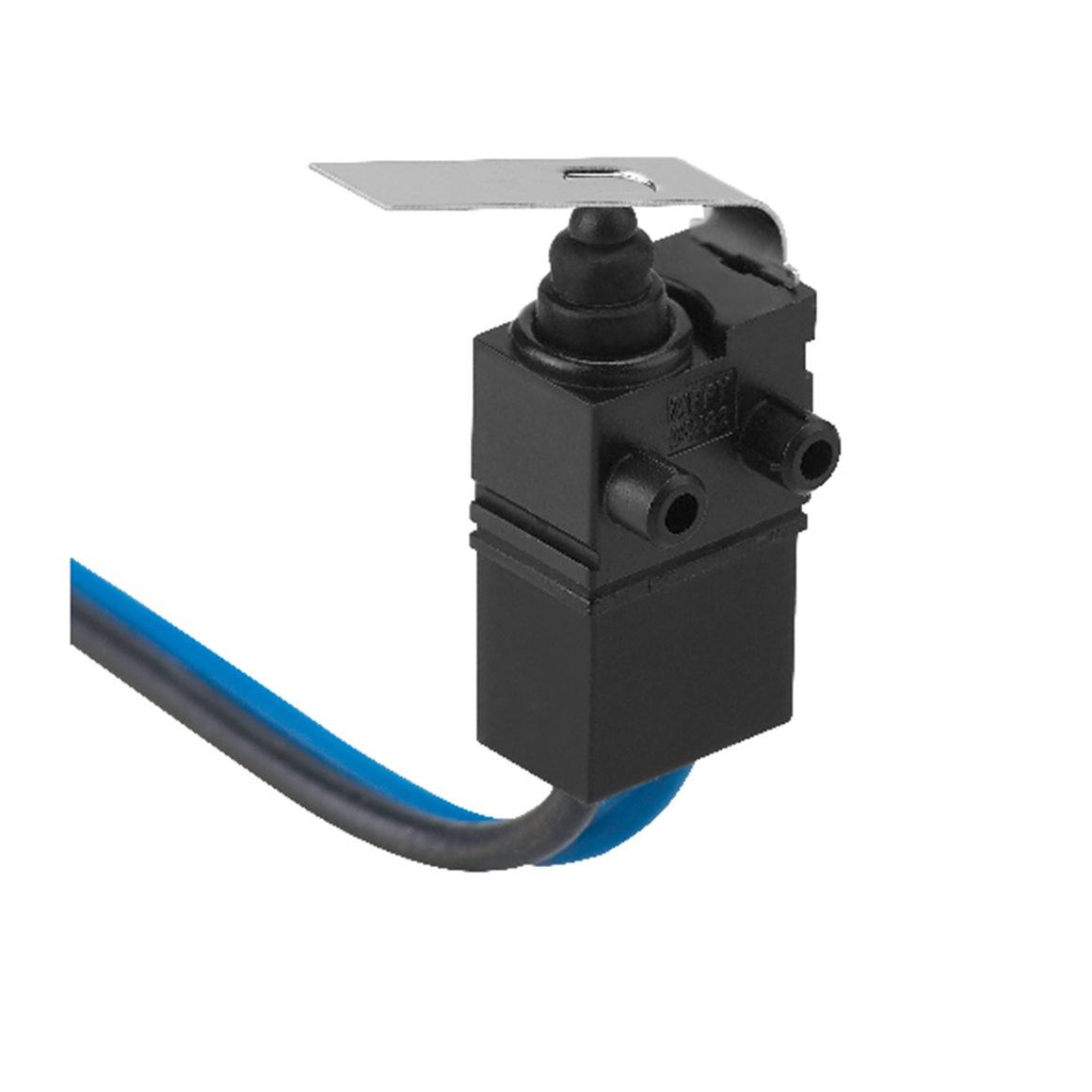

DW32(IP67)series
Specifications
Operating frequency(electrical):
Max. 120 Operation / mim
Contact resistance:
500m Ω(max)
Insulation resistance(at 500 VDC)
100M Ω(Min)
Dielectric strength(50 - 60 Hz)
Min. 500VAC RMS
Service life(electrical)
150,000~300,000 Operations
Rating
50mA 16VDC; 100mA 12VDC; 1mA 5VDC
Application
1. Automobiles
detection of door opening and closing and shift lever position etc.
2. Household appliances
propane stoves, vacuum cleaners, washing machines, air conditioners etc.
Operating frequency(electrical):
Max. 120 Operation / mim
Contact resistance:
500m Ω(max)
Insulation resistance(at 500 VDC)
100M Ω(Min)
Dielectric strength(50 - 60 Hz)
Min. 500VAC RMS
Service life(electrical)
150,000~300,000 Operations
Rating
50mA 16VDC; 100mA 12VDC; 1mA 5VDC
Application
1. Automobiles
detection of door opening and closing and shift lever position etc.
2. Household appliances
propane stoves, vacuum cleaners, washing machines, air conditioners etc.
Dimensions
Order Information
