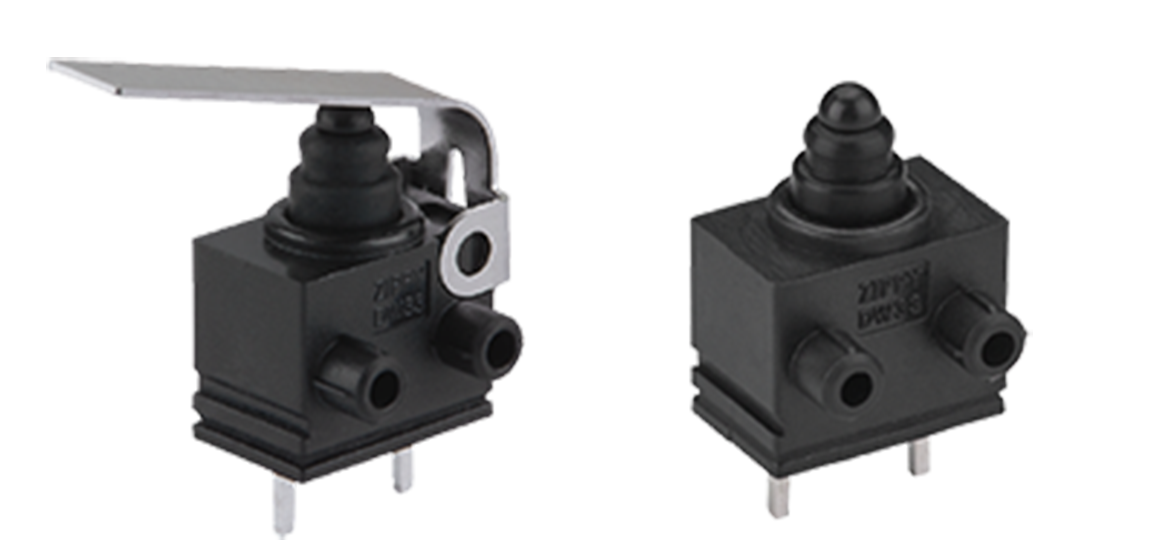

Sealed Water Proof Switches (DW33 series)

Specifications
Operating frequency(electrical):
   Max. 120 Operation / mim
Contact resistance:
   500m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Dielectric strength(50 - 60 Hz)
   Min.500VAC RMS
Service life(electrical)
    150,000~300,000 Operations
Degree Of Protection
   IP67 (excluding the terminals on terminal models)
   ※ For IP67 option, please contact your ZIPPY
   sales representative.

Rating
50mA 16VDC; 100mA 12VDC; 1mA 5VDC

Application
1. Automobiles
detection of door opening and closing and shift lever position etc.
2. Household appliances
propane stoves, vacuum cleaners, washing machines, air conditioners etc.

Dimensions
Unless otherwise specitied, a tolerance of ±0.4mm applies to all dimensions.
