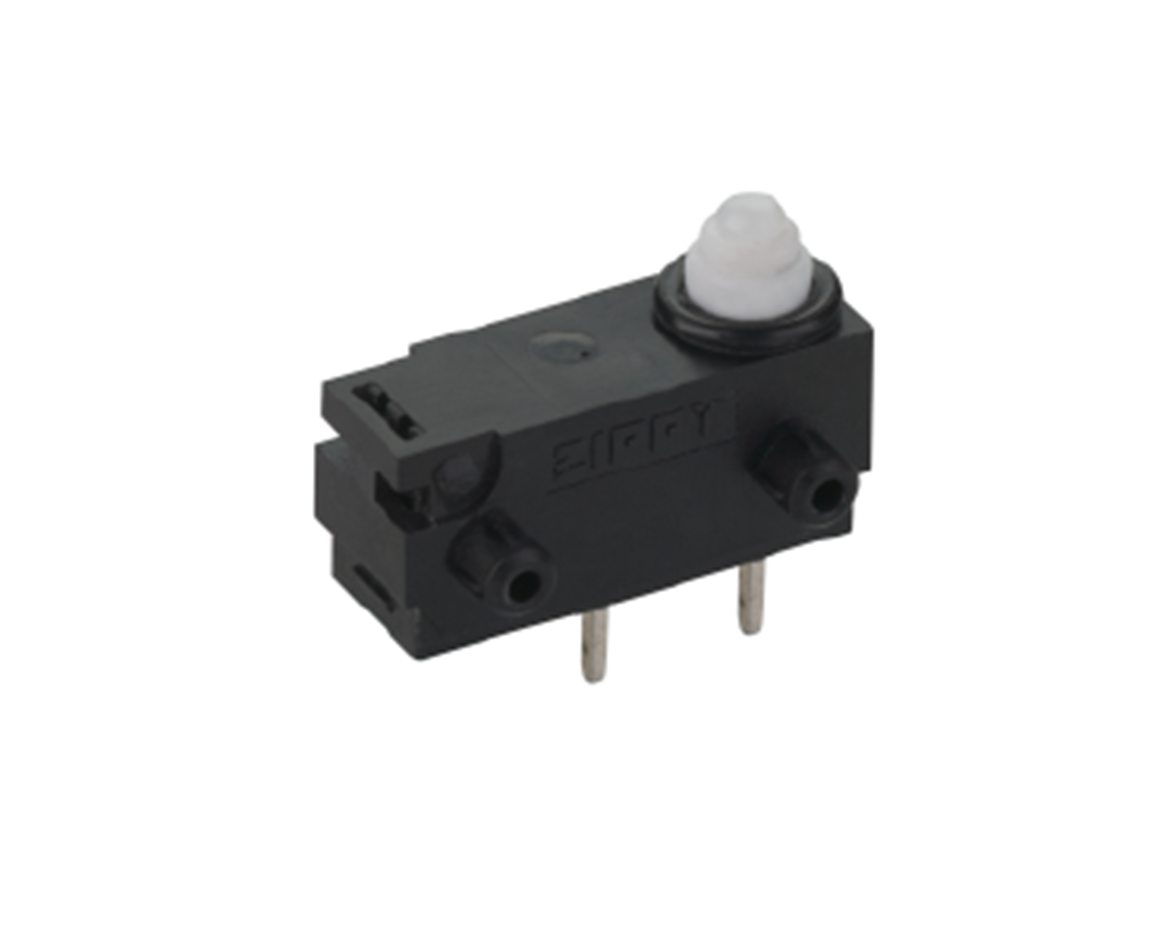

Sealed Water Proof Switches (DW51 series)

Specifications
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   100m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min. 500,000 Operations
Degree Of Protection
   IP67 (excluding the terminals on terminal models)
   ※ For IP67 option, please contact your ZIPPY
   sales representative.

Rating
0.1A/3A 125V;0.1A/3A 12VDC
Application
1. Industrial and automotive applications
detection of door opening and closing and shift lever position etc.
2. Household appliances
propane stoves, vacuum cleaners, washing machines, air conditioners etc.
3. Security system Unless otherwise specitied, a tolerance of ±0.4mm applies to all dimensions.
