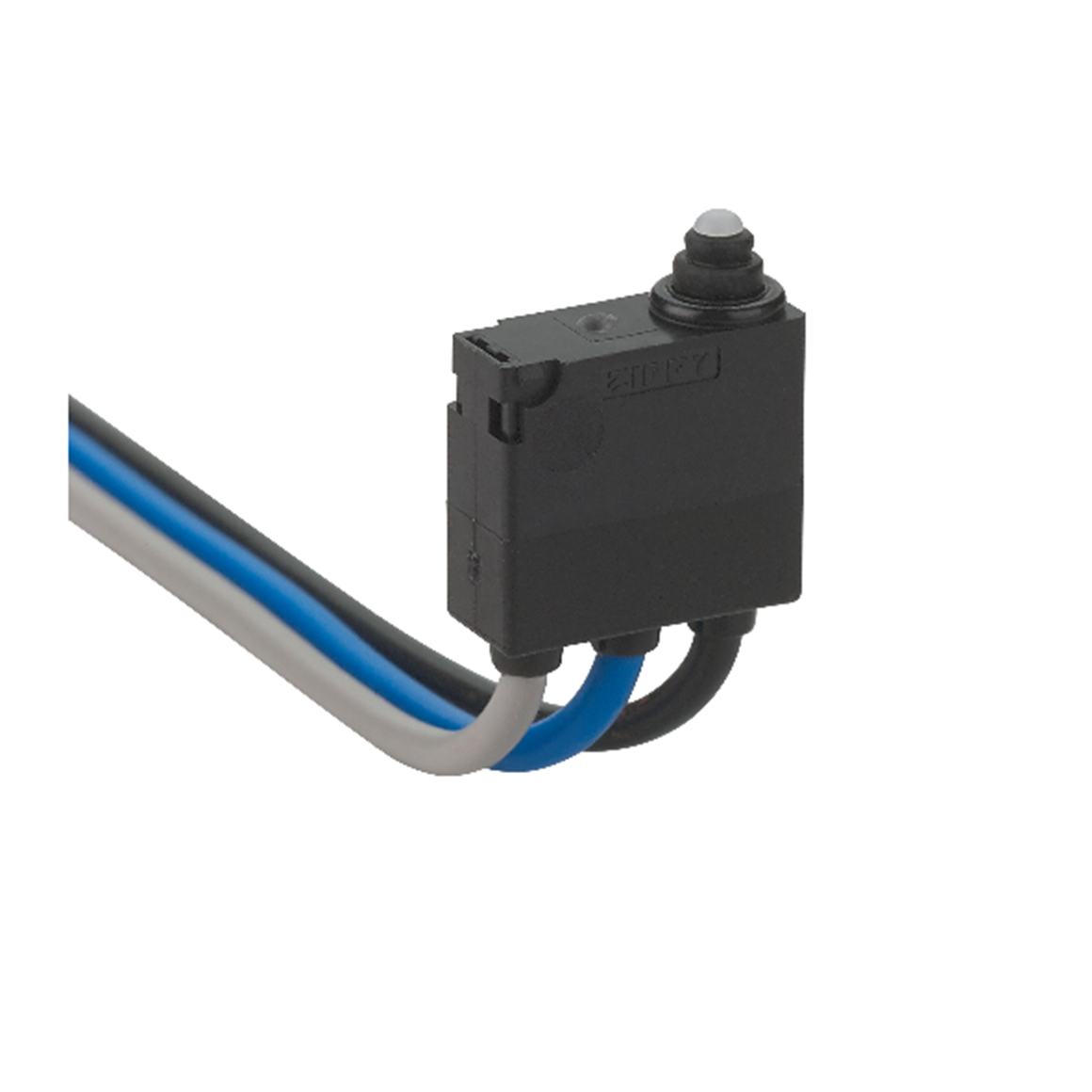

DW52(IP67)series
Specifications
Operating frequency(mechanical):
120 Operation / mim
Operating frequency(electrical):
10~30 Operation / mim
Contact resistance:
100m Ω(max)
Insulation resistance(at 500 VDC)
100M Ω(Min)
Service life(mechanical)
Min. 500,000 Operations
Rating
0.1A/3A 125V;0.1A/3A 12VDC
Application
1. Industrial and automotive applications
detection of door opening and closing and shift lever position etc.
2. Household appliances
propane stoves, vacuum cleaners, washing machines, air conditioners etc.
3. Security system
Dimensions
Unless otherwise specitied, a tolerance of ±0.4mm applies to all dimensions.
Specifications
Operating frequency(mechanical):
120 Operation / mim
Operating frequency(electrical):
10~30 Operation / mim
Contact resistance:
100m Ω(max)
Insulation resistance(at 500 VDC)
100M Ω(Min)
Service life(mechanical)
Min. 500,000 Operations
Rating
0.1A/3A 125V;0.1A/3A 12VDC
Application
1. Industrial and automotive applications
detection of door opening and closing and shift lever position etc.
2. Household appliances
propane stoves, vacuum cleaners, washing machines, air conditioners etc.
3. Security system
Dimensions
Unless otherwise specitied, a tolerance of ±0.4mm applies to all dimensions.
