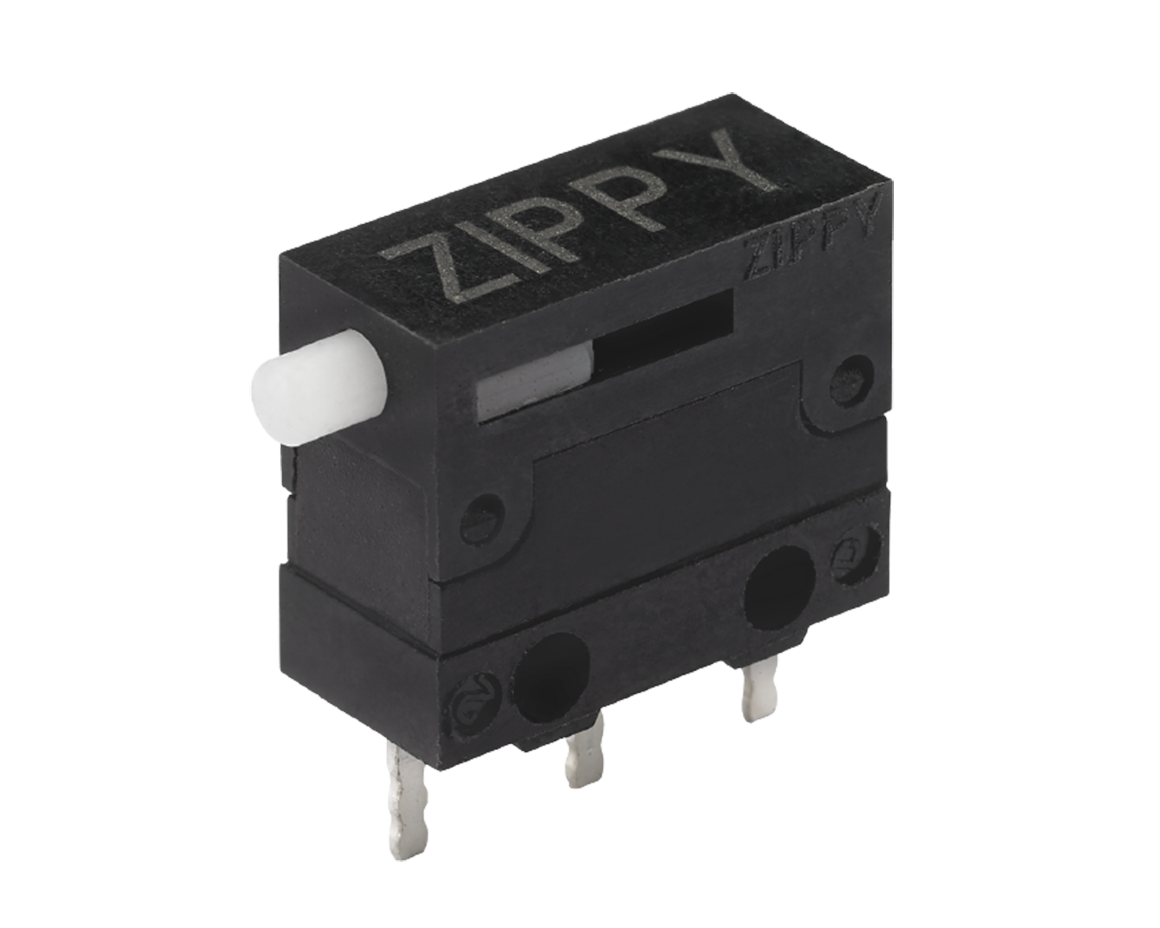

MDU-DFW series
Specifications
120 Operation / mim
Operating frequency(electrical):
10~30 Operation / mim
Contact resistance:
100m Ω(max)
Insulation resistance(at 500 VDC)
100M Ω(Min)
Service life(mechanical)
1,000,000 Operations
Service life(electrical)
10,000 Operations
Rating
0.1A/3A/5A 125/250VAC,3A 24VDC
Application
Automotive
Air conditioner
communication
Electric tooth brush
toys
Dimensions
Unless otherwise specitied, a tolerance of ±0.4mm applies to all dimensions.
Contact Configuration
Order Information
Terminal Types
Operating Characteristics
